SI5515CDC-T1-GE3

SI5515CDC-T1-GE3

Part NumberSI5515CDC-T1-GE3

ManufacturerVishay Siliconix

DescriptionMOSFET N/P-CH 20V 4A 1206-8

DatasheetSI5515CDC

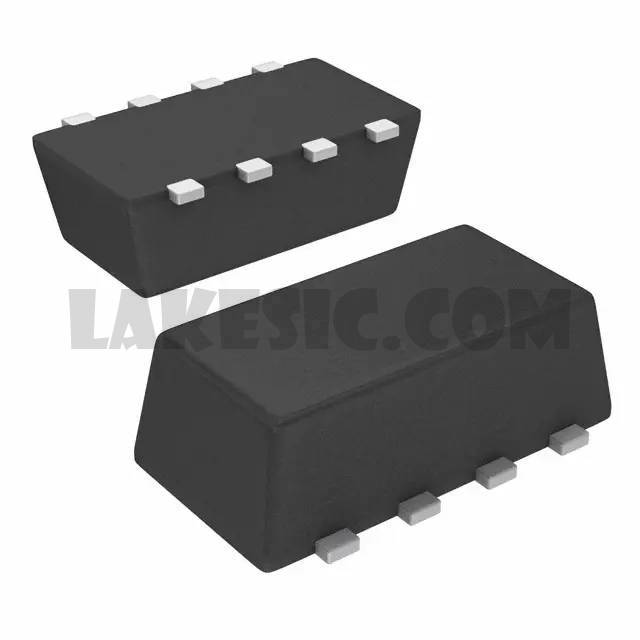

Package / Case8-SMD, Flat Lead

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array N and P-Channel 20V 4A 3.1W Surface Mount 1206-8 ChipFET™

To learn about the specification of SI5515CDC-T1-GE3, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SI5515CDC-T1-GE3 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SI5515CDC-T1-GE3.
We are offering SI5515CDC-T1-GE3 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SI5515CDC-T1-GE3 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	SI5515CDC
Standard Package	1
Manufacturer	Vishay Siliconix
Series	TrenchFET®
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N and P-Channel
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	4A
Rds On (Max) @ Id, Vgs	36mOhm @ 6A, 4.5V
Vgs(th) (Max) @ Id	800mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs	11.3nC @ 5V
Input Capacitance (Ciss) (Max) @ Vds	632pF @ 10V
Power - Max	3.1W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-SMD, Flat Lead
Supplier Device Package	1206-8 ChipFET™
Base Part Number	SI5515
