SIA432DJ-T1-GE3

SIA432DJ-T1-GE3

Part NumberSIA432DJ-T1-GE3

ManufacturerVishay Siliconix

DescriptionMOSFET N-CH 30V 12A SC70-6

DatasheetSIA432DJ

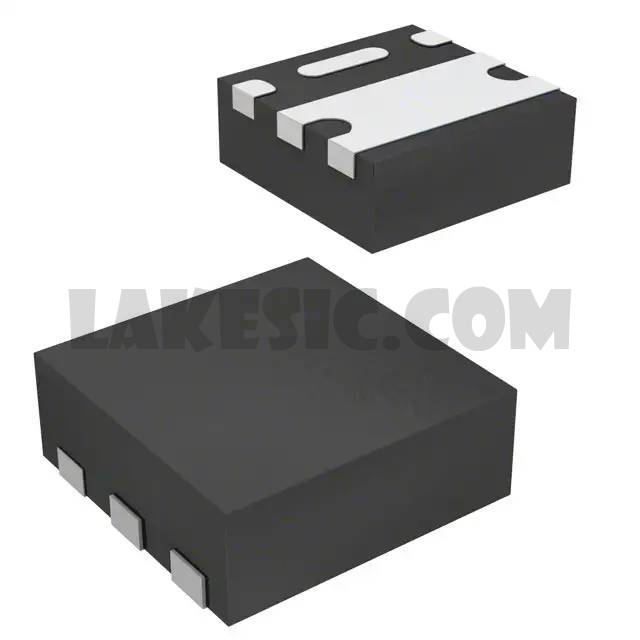

Package / CasePowerPAK® SC-70-6

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 30V 12A (Tc) 3.5W (Ta), 19.2W (Tc) Surface Mount PowerPAK® SC-70-6 Single

To learn about the specification of SIA432DJ-T1-GE3, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SIA432DJ-T1-GE3 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SIA432DJ-T1-GE3.
We are offering SIA432DJ-T1-GE3 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SIA432DJ-T1-GE3 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	SIA432DJ
Standard Package	1
Manufacturer	Vishay Siliconix
Series	TrenchFET®
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	12A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	20mOhm @ 6A, 10V
Vgs(th) (Max) @ Id	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	20nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	800pF @ 15V
FET Feature	-
Power Dissipation (Max)	3.5W (Ta), 19.2W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerPAK® SC-70-6 Single
Package / Case	PowerPAK® SC-70-6
