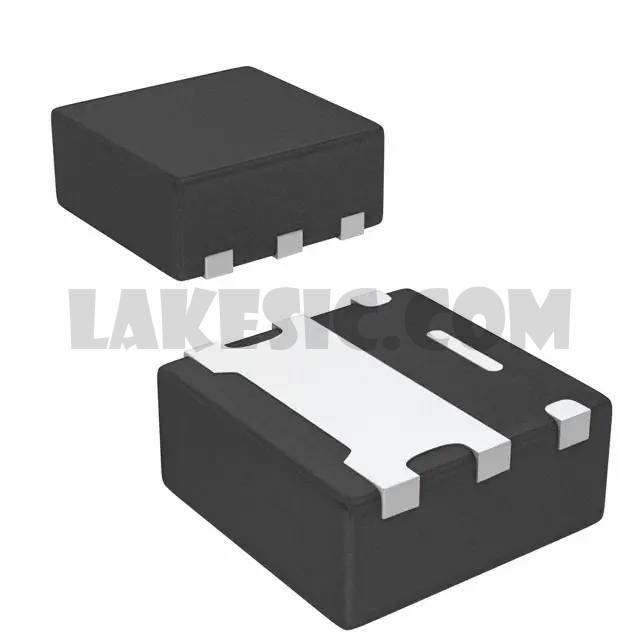

SIB456DK-T1-GE3

Part NumberSIB456DK-T1-GE3

To learn about the specification of SIB456DK-T1-GE3, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SIB456DK-T1-GE3 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SIB456DK-T1-GE3.
We are offering SIB456DK-T1-GE3 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	SIB456DK
Standard Package	3000
Manufacturer	Vishay Siliconix
Series	TrenchFET®
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100V
Current - Continuous Drain (Id) @ 25°C	6.3A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	185mOhm @ 1.9A, 10V
Vgs(th) (Max) @ Id	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	5nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	130pF @ 50V
FET Feature	-
Power Dissipation (Max)	2.4W (Ta), 13W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerPAK® SC-75-6L Single
Package / Case	PowerPAK® SC-75-6L
