SIHH14N60E-T1-GE3

SIHH14N60E-T1-GE3

Part NumberSIHH14N60E-T1-GE3

ManufacturerVishay Siliconix

DescriptionMOSFET N-CH 600V 16A POWERPAK8X8

DatasheetSIHH14N60E

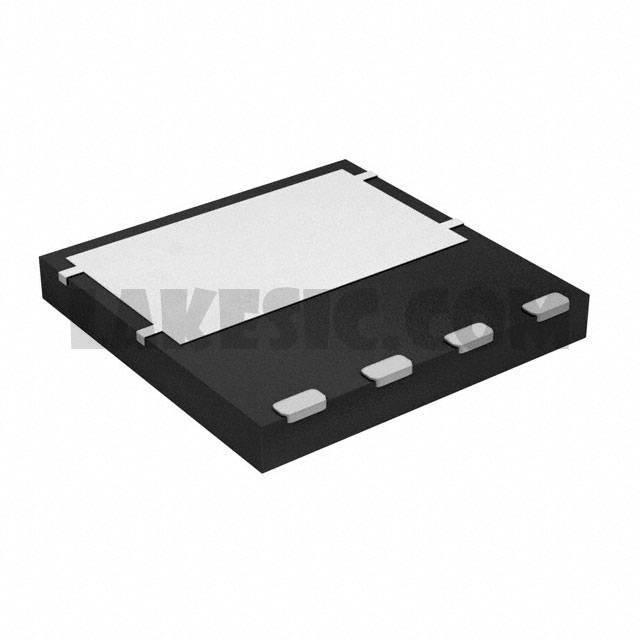

Package / Case8-PowerTDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 600V 16A (Tc) 147W (Tc) Surface Mount PowerPAK® 8 x 8

To learn about the specification of SIHH14N60E-T1-GE3, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SIHH14N60E-T1-GE3 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SIHH14N60E-T1-GE3.
We are offering SIHH14N60E-T1-GE3 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SIHH14N60E-T1-GE3 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	SIHH14N60E
Standard Package	3000
Manufacturer	Vishay Siliconix
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600V
Current - Continuous Drain (Id) @ 25°C	16A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	255mOhm @ 7A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	82nC @ 10V
Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	1416pF @ 100V
FET Feature	-
Power Dissipation (Max)	147W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerPAK® 8 x 8
Package / Case	8-PowerTDFN
