SISF00DN-T1-GE3

Part NumberSISF00DN-T1-GE3

ManufacturerVishay Siliconix

DescriptionMOSFET DUAL N-CH 30V POWERPAK 12

DatasheetSISF00DN

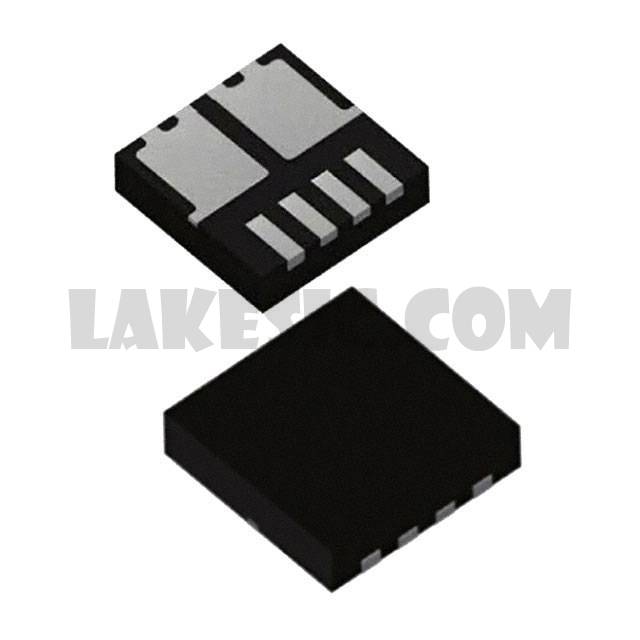

Package / CasePowerPAK® 1212-8SCD

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Dual) Common Drain 30V 60A (Tc) 69.4W (Tc) Surface Mount PowerPAK® 1212-8SCD

To learn about the specification of SISF00DN-T1-GE3, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SISF00DN-T1-GE3 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SISF00DN-T1-GE3.
We are offering SISF00DN-T1-GE3 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SISF00DN-T1-GE3 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	SISF00DN
Standard Package	3000
Manufacturer	Vishay Siliconix
Series	TrenchFET® Gen IV
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	2 N-Channel (Dual) Common Drain
FET Feature	Standard
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	60A (Tc)
Rds On (Max) @ Id, Vgs	5mOhm @ 10A, 10V
Vgs(th) (Max) @ Id	2.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	53nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	2700pF @ 15V
Power - Max	69.4W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	PowerPAK® 1212-8SCD
Supplier Device Package	PowerPAK® 1212-8SCD
