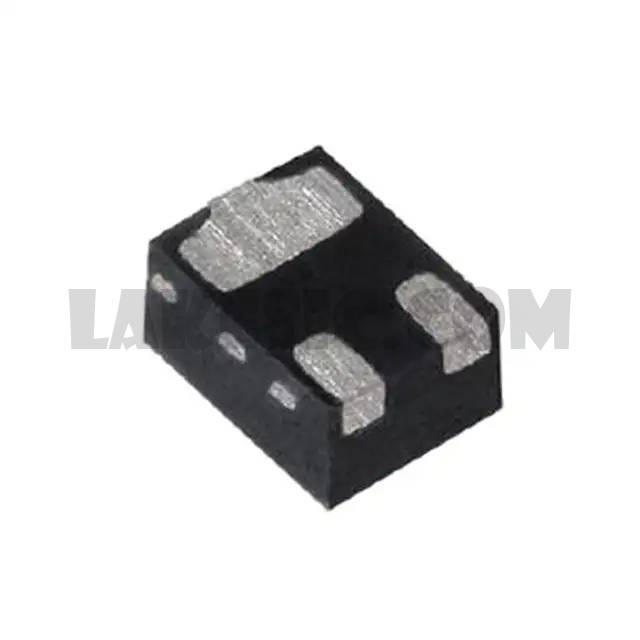

SIUD403ED-T1-GE3

SIUD403ED-T1-GE3

Part NumberSIUD403ED-T1-GE3

ManufacturerVishay Siliconix

DescriptionMOSFET P-CH 20V 500MA PWRPAK0806

DatasheetSIUD403ED

Package / CasePowerPAK® 0806

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionP-Channel 20V 500mA (Ta) 1.25W (Ta) Surface Mount PowerPAK® 0806

To learn about the specification of SIUD403ED-T1-GE3, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SIUD403ED-T1-GE3 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SIUD403ED-T1-GE3.
We are offering SIUD403ED-T1-GE3 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SIUD403ED-T1-GE3 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	SIUD403ED
Standard Package	1
Manufacturer	Vishay Siliconix
Series	TrenchFET® Gen III
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	500mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.5V, 4.5V
Rds On (Max) @ Id, Vgs	1.25Ohm @ 300mA, 4.5V
Vgs(th) (Max) @ Id	900mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs	1nC @ 4.5V
Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	31pF @ 10V
FET Feature	-
Power Dissipation (Max)	1.25W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerPAK® 0806
Package / Case	PowerPAK® 0806
