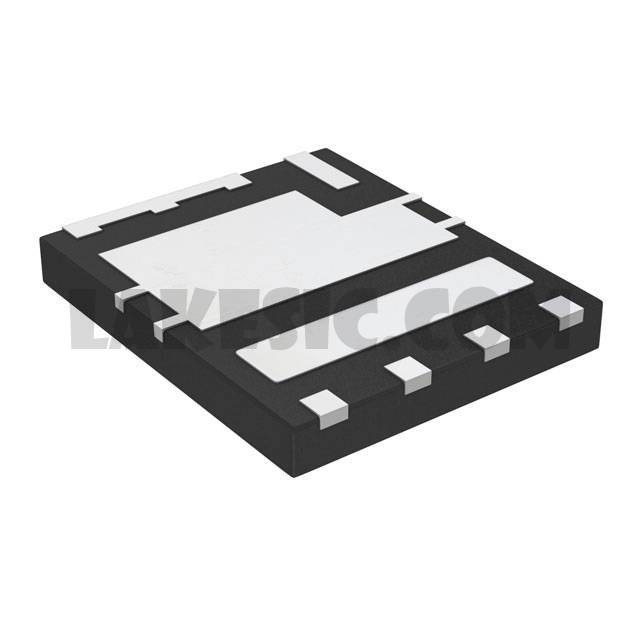

SIZF906ADT-T1-GE3

Part NumberSIZF906ADT-T1-GE3

ManufacturerVishay Siliconix

DescriptionMOSFET DUAL N-CHAN 30V

DatasheetSIZF906ADT

Package / Case8-PowerWDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Dual), Schottky 30V 27A (Ta), 60A (Tc), 52A (Ta), 60A (Tc) 4.5W (Ta), 38W (Tc), 5W (Ta), 83W (Tc) Surface Mount 8-PowerPair® (6x5)

To learn about the specification of SIZF906ADT-T1-GE3, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SIZF906ADT-T1-GE3 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SIZF906ADT-T1-GE3.
We are offering SIZF906ADT-T1-GE3 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SIZF906ADT-T1-GE3 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	SIZF906ADT
Standard Package	1
Manufacturer	Vishay Siliconix
Series	TrenchFET® Gen IV
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	2 N-Channel (Dual), Schottky
FET Feature	Standard
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	27A (Ta), 60A (Tc), 52A (Ta), 60A (Tc)
Rds On (Max) @ Id, Vgs	3.8mOhm @ 15A, 10V, 1.17mOhm @ 20A, 10V
Vgs(th) (Max) @ Id	2.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	49nC @ 10V, 200nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	2000pF @ 15V, 8200pF @ 15V
Power - Max	4.5W (Ta), 38W (Tc), 5W (Ta), 83W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-PowerWDFN
Supplier Device Package	8-PowerPair® (6x5)
