SJ6040RTP
SJ6040RTP
Part Number SJ6040RTP

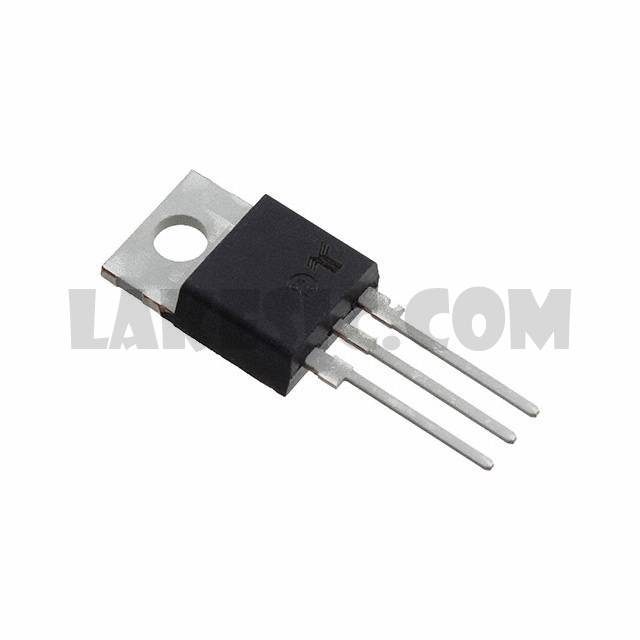

Description THYRISTOR SCR 40A TO-220
Package / Case TO-220-3
Unit Price Request a Quote
Lead Time To be Confirmed
Detailed Description SCR 600V 40A Sensitive Gate Through Hole TO-220AB
To learn about the specification of SJ6040RTP, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SJ6040RTP with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SJ6040RTP.
We are offering SJ6040RTP for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
SJ6040RTP - Product Attributes
Categories
Discrete Semiconductor Products / Thyristors - SCRs
Datasheet SJxx40x Series
Standard Package 500
Manufacturer Littelfuse Inc.
Series Teccor®
Packaging Tube
Part Status Active
Voltage - Off State 600V
Voltage - Gate Trigger (Vgt) (Max) 1.5V
Current - Gate Trigger (Igt) (Max) 40mA
Voltage - On State (Vtm) (Max) 1.7V
Current - On State (It (AV)) (Max) 25A
Current - On State (It (RMS)) (Max) 40A
Current - Hold (Ih) (Max) 60mA
Current - Off State (Max) 10µA
Current - Non Rep. Surge 50, 60Hz (Itsm) 430A, 520A
SCR Type Sensitive Gate
Operating Temperature -40°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case TO-220-3
Supplier Device Package TO-220AB
