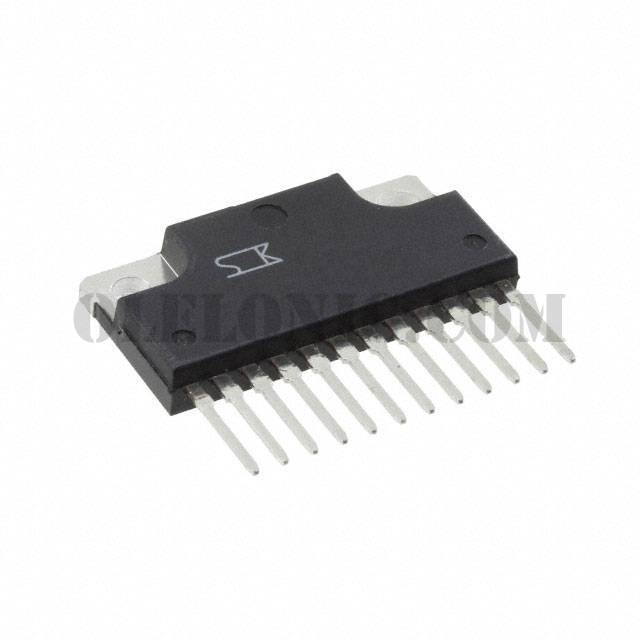

SLA6022

Part NumberSLA6022

ManufacturerSanken

DescriptionTRANS 3NPN/3PNP DARL 12SIP

DatasheetSLA6022

Package / Case12-SIP

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor Array 3 NPN, 3 PNP Darlington (3-Phase Bridge) 80V, 100V 5A 5W Through Hole 12-SIP w/fin

To learn about the specification of SLA6022, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SLA6022 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SLA6022.
We are offering SLA6022 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SLA6022 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Arrays
Datasheet	SLA6022
Standard Package	18
Manufacturer	Sanken
Series	-
Packaging	Tube
Part Status	Active
Transistor Type	3 NPN, 3 PNP Darlington (3-Phase Bridge)
Current - Collector (Ic) (Max)	5A
Voltage - Collector Emitter Breakdown (Max)	80V, 100V
Vce Saturation (Max) @ Ib, Ic	1.5V @ 6mA, 3A
Current - Collector Cutoff (Max)	10µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	2000 @ 3A, 4V
Power - Max	5W
Frequency - Transition	-
Operating Temperature	150°C (TJ)
Mounting Type	Through Hole
Package / Case	12-SIP
Supplier Device Package	12-SIP w/fin
