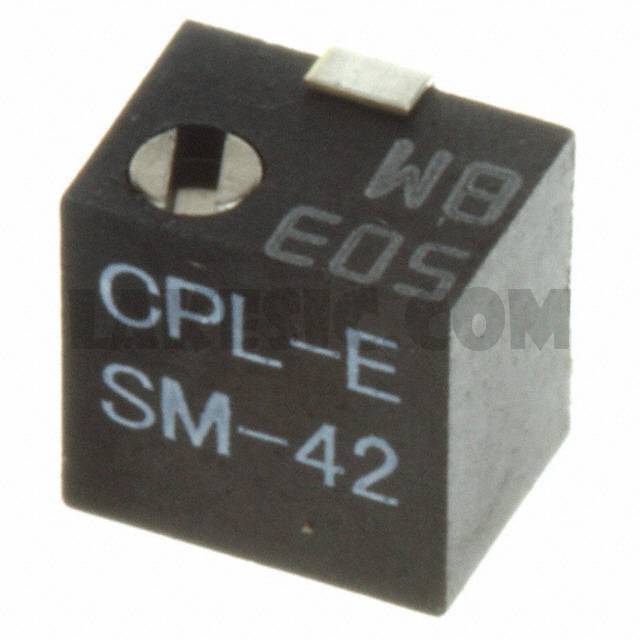

SM-42TA503


SM-42TA503

Part NumberSM-42TA503

Manufacturer

Description

Datasheet

Package / Case

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

SM-42TA503 - Product Attributes

Categories Potentiometers, Variable Resistors / Trimmer Potentiometers
Datasheet
Standard Package1
ManufacturerNidec Copal Electronics
SeriesSM42
PackagingCut Tape (CT)
Part StatusActive
Resistance50 kOhms
Power (Watts)0.25W, 1/4W
Tolerance±10%
Temperature Coefficient±100ppm/°C
Number of Turns11
Adjustment TypeSide Adjustment
Resistive MaterialCermet
Mounting TypeSurface Mount
Termination StyleJ Lead
Size / DimensionSquare - 0.189" L x 0.181" W x 0.146" H (4.80mm x 4.60mm x 3.70mm)
