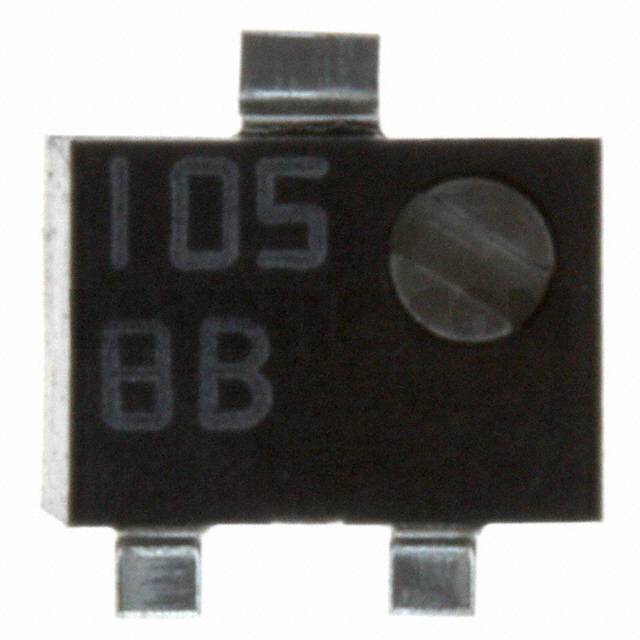

SM-42TX105


SM-42TX105

Part NumberSM-42TX105

Manufacturer

Description

Datasheet

Package / Case

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

SM-42TX105 - Product Attributes

Categories Potentiometers, Variable Resistors / Trimmer Potentiometers
Datasheet
Standard Package1
ManufacturerNidec Copal Electronics
SeriesSM42
PackagingCut Tape (CT)
Part StatusActive
Resistance1 MOhms
Power (Watts)0.25W, 1/4W
Tolerance±10%
Temperature Coefficient±100ppm/°C
Number of Turns11
Adjustment TypeTop Adjustment
Resistive MaterialCermet
Mounting TypeSurface Mount
Termination StyleGull Wing
Size / DimensionSquare - 0.189" L x 0.138" W x 0.201" H (4.80mm x 3.50mm x 5.10mm)
