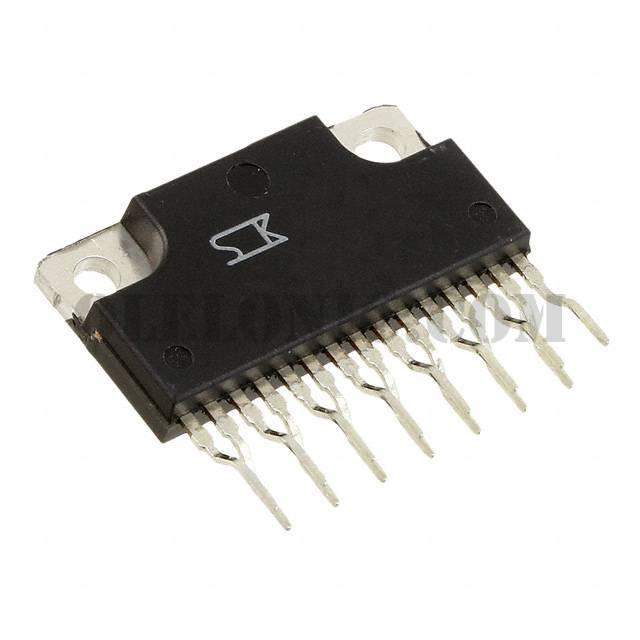

SMA4036


SMA4036

Part NumberSMA4036

Manufacturer

Description

Datasheet

Package / Case15-SIP Formed Leads

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

SMA4036 - Product Attributes

Categories Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Arrays
Datasheet
Standard Package1440
ManufacturerSanken
Series-
PackagingTube
Part StatusActive
Transistor Type6 NPN Darlington
Current - Collector (Ic) (Max)2A
Voltage - Collector Emitter Breakdown (Max)120V
Vce Saturation (Max) @ Ib, Ic1.5V @ 2mA, 1A
Current - Collector Cutoff (Max)10µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce2000 @ 1A, 4V
Power - Max4W
Frequency - Transition50MHz
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Package / Case15-SIP Formed Leads
Supplier Device Package15-SIP
