Categories	Discrete Semiconductor Products / Diodes - RF
Datasheet	SMP1330 Series
Standard Package	3000
Manufacturer	Skyworks Solutions Inc.
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	PIN - Single
Voltage - Peak Reverse (Max)	50V
Current - Max	150mA
Capacitance @ Vr, F	1pF @ 0V, 1MHz
Resistance @ If, F	1.9Ohm @ 10mA, 100MHz
Power Dissipation (Max)	750mW
Operating Temperature	-65°C ~ 150°C (TA)

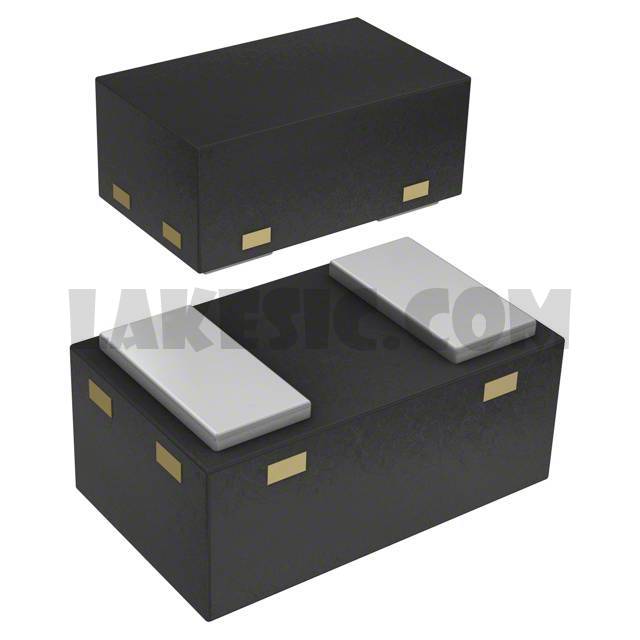

Package / Case	0402 (1005 Metric)
Supplier Device Package	0402
Base Part Number	SMP1330-040

MA4P1200NM-401T	M/A-Com Technology Solutions, RF Diode PIN - Single 100V 1.5W Axial,	View
DSG9500-000	Skyworks Solutions Inc., RF Diode PIN - Single 100V 250mW,	View
SMP1302-040LF	Skyworks Solutions Inc., RF Diode PIN - Single 200V 250mW SOD-882,	View
MADP-011104-TR0500	M/A-Com Technology Solutions, RF Diode PIN - Single 800V 250mA 12-PQFN (3x3),	View
CLA4609-086LF	Skyworks Solutions Inc., RF Diode PIN - Single 250V 200mA 3-QFN (2x2),	View
SMP1304-027LF	Skyworks Solutions Inc., RF Diode PIN - 2 Pair CA + CC 200V 250mW SOT-5,	View
MA4P7455-1225T	M/A-Com Technology Solutions, RF Diode PIN - PI Element 75mA SOT-25,	View
SMPA1304-011LF	Skyworks Solutions Inc., RF Diode PIN - Single 200V 250mW SOD-323,	View
MA4P606-131	M/A-Com Technology Solutions, RF Diode PIN - Single 1000V Die,	View
SMP1352-040LF	Skyworks Solutions Inc., RF Diode PIN - Single 200V 150mA 750mW 0402,	View
MA4P7001F-1072T	M/A-Com Technology Solutions, RF Diode PIN - Single 100V 10W,	View
BA779-HG3-08	Vishay Semiconductor Diodes Division, RF Diode PIN - Single 30V 50mA SOT-23-3,	View

SMP1330-040LF

Part NumberSMP1330-040LF
