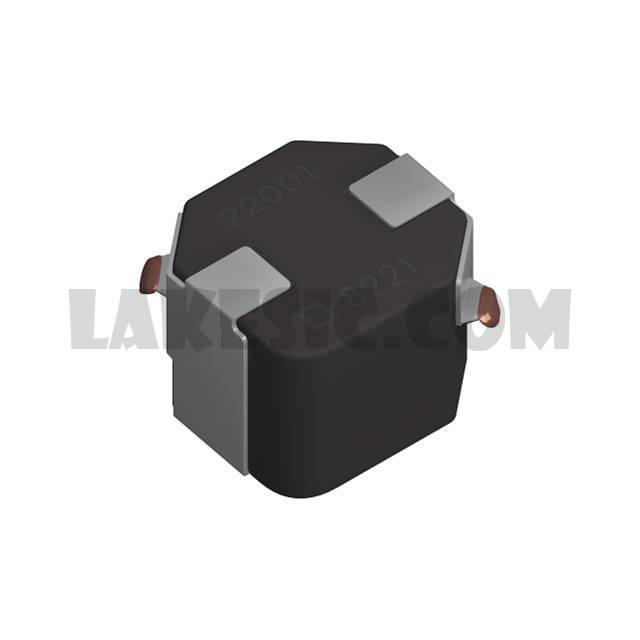

SPM10065VT-1R0M-D
SPM10065VT-1R0M-D
Part Number SPM10065VT-1R0M-D
Description FIXED IND 1UH 22.9A 2.64OHM SMD
Package / Case Nonstandard
Unit Price Request a Quote
Lead Time To be Confirmed
Detailed Description 1µH Shielded Wirewound Inductor 22.9A 2.64Ohm Max Nonstandard
To learn about the specification of SPM10065VT-1R0M-D, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SPM10065VT-1R0M-D with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SPM10065VT-1R0M-D.
We are offering SPM10065VT-1R0M-D for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
SPM10065VT-1R0M-D - Product Attributes
Categories
Inductors, Coils, Chokes / Fixed Inductors
Datasheet SPM10065VT-D Type, Auto Datasheet
Standard Package 1
Manufacturer TDK Corporation
Series SPM-VT-D
Packaging Cut Tape (CT)
Part Status Active
Type Wirewound
Material - Core Metal Composite
Inductance 1µH
Tolerance ±20%
Current Rating (Amps) 22.9A
Current - Saturation 27.4A
Shielding Shielded
DC Resistance (DCR) 2.64Ohm Max
Q @ Freq -
Frequency - Self Resonant -
Ratings AEC-Q200
Operating Temperature -55°C ~ 155°C
Inductance Frequency - Test 100kHz
Features -
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package -
Size / Dimension 0.413" L x 0.394" W (10.50mm x 10.00mm)
Height - Seated (Max) 0.256" (6.50mm)
