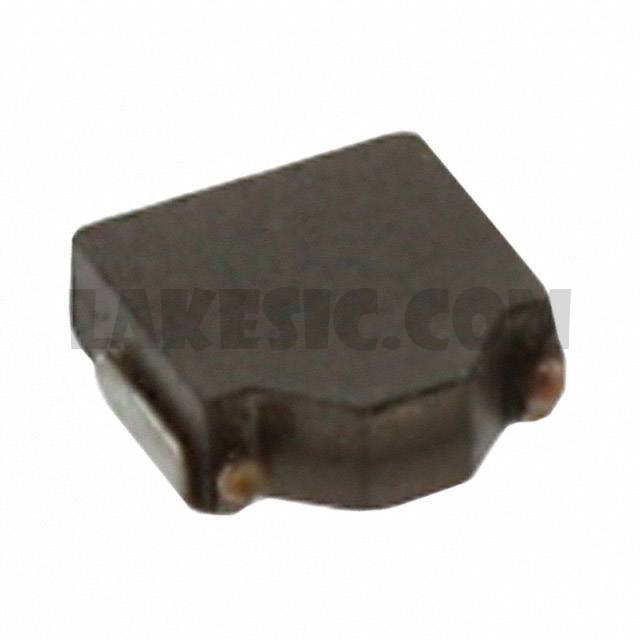

SPM3012T-4R7M


SPM3012T-4R7M

Part NumberSPM3012T-4R7M

Manufacturer

Description

Datasheet

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

SPM3012T-4R7M - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package1
ManufacturerTDK Corporation
SeriesSPM
PackagingCut Tape (CT)
Part StatusNot For New Designs
TypeWirewound
Material - CoreMetal
Inductance4.7µH
Tolerance±20%
Current Rating (Amps)1.3A
Current - Saturation1.5A
ShieldingShielded
DC Resistance (DCR)270mOhm Max
Q @ Freq-
Frequency - Self Resonant-
Ratings-
Operating Temperature-40°C ~ 125°C
Inductance Frequency - Test100kHz
Mounting TypeSurface Mount
Package / CaseNonstandard
Supplier Device Package-
Size / Dimension0.126" L x 0.118" W (3.20mm x 3.00mm)
Height - Seated (Max)0.047" (1.20mm)
