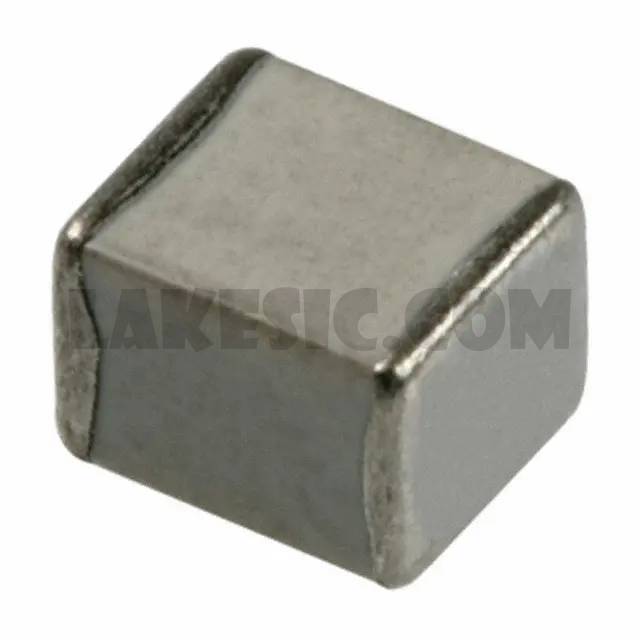

Categories	Capacitors / Ceramic Capacitors
Datasheet	SQ Series, Ulta Low ESR MLC
Standard Package	1000
Manufacturer	AVX Corporation
Series	SQ
Packaging	Tape & Reel (TR)
Part Status	Active
Capacitance	10pF
Tolerance	±5%
Voltage - Rated	500V
Temperature Coefficient	M
Operating Temperature	-55°C ~ 175°C
Features	High Q, Low Loss, Ultra Low ESR
Ratings	-
Applications	RF, Microwave, High Frequency
Mounting Type	Surface Mount, MLCC
Package / Case	1111 (2828 Metric)
Size / Dimension	0.110" L x 0.110" W (2.79mm x 2.79mm)
Height - Seated (Max)	-
Thickness (Max)	0.102" (2.59mm)
Lead Spacing	-
Lead Style	-

SQCAVM8R2BATME/500	AVX Corporation, 8.2pF ±0.1pF 250V Ceramic Capacitor M 0505 (1313 Metric), SQ	View
SQCSVA5R6CAT1A	AVX Corporation, 5.6pF ±0.25pF 250V Ceramic Capacitor A 0603 (1608 Metric), SQ	View
SQCB7M6R8CAJME	AVX Corporation, 6.8pF ±0.25pF 500V Ceramic Capacitor M 1111 (2828 Metric), SQ	View
SQCB7M560JAJME	AVX Corporation, 56pF ±5% 500V Ceramic Capacitor M 1111 (2828 Metric), SQ	View
SQCB7M470JATME	AVX Corporation, 47pF ±5% 500V Ceramic Capacitor M 1111 (2828 Metric), SQ	View
SQCSVA3R0BAT1A	AVX Corporation, 3pF ±0.1pF 250V Ceramic Capacitor A 0603 (1608 Metric), SQ	View
SQCSVA6R8CAT1A	AVX Corporation, 6.8pF ±0.25pF 250V Ceramic Capacitor A 0603 (1608 Metric), SQ	View
SQCAEM1R5BAJME	AVX Corporation, 1.5pF ±0.1pF 150V Ceramic Capacitor M 0505 (1313 Metric), SQ	View
SQCFVA1R0BATME	AVX Corporation, 1pF ±0.1pF 250V Ceramic Capacitor A 0805 (2012 Metric), SQ	View
SQCSVA200JAT1A	AVX Corporation, 20pF ±5% 250V Ceramic Capacitor A 0603 (1608 Metric), SQ	View
SQCB9M121JAJME	AVX Corporation, 120pF ±5% 300V Ceramic Capacitor M 1111 (2828 Metric), SQ	View
SQCB7M430JATME\500	AVX Corporation, 43pF ±5% 500V Ceramic Capacitor M 1111 (2828 Metric), SQ	View

SQCB7M100JAJME

Part NumberSQCB7M100JAJME
