SQJA70EP-T1_GE3

SQJA70EP-T1_GE3

Part NumberSQJA70EP-T1_GE3

ManufacturerVishay Siliconix

DescriptionMOSFET N-CH 100V 14.7A SO-8

DatasheetSQJA70EP

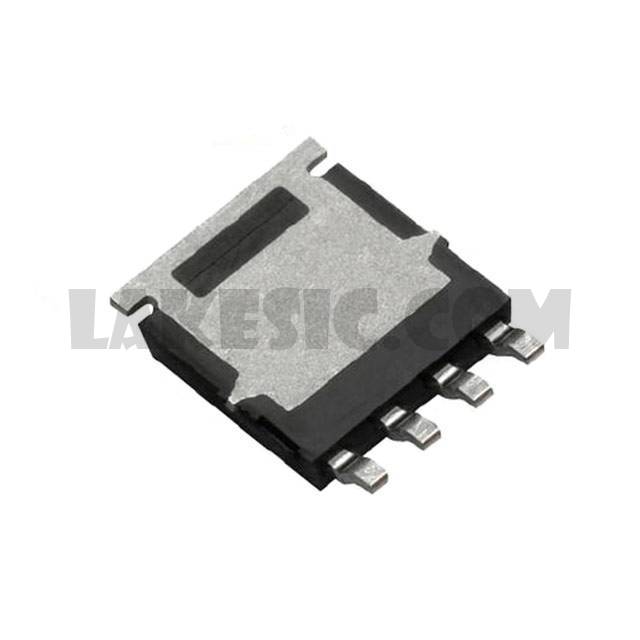

Package / CasePowerPAK® SO-8

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 100V 14.7A (Tc) 27W (Tc) Surface Mount PowerPAK® SO-8

To learn about the specification of SQJA70EP-T1_GE3, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SQJA70EP-T1_GE3 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SQJA70EP-T1_GE3.
We are offering SQJA70EP-T1_GE3 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SQJA70EP-T1_GE3 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	SQJA70EP
Standard Package	3000
Manufacturer	Vishay Siliconix
Series	Automotive, AEC-Q101, TrenchFET®
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100V
Current - Continuous Drain (Id) @ 25°C	14.7A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	95mOhm @ 4A, 10V
Vgs(th) (Max) @ Id	3.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	7nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	220pF @ 25V
FET Feature	-
Power Dissipation (Max)	27W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerPAK® SO-8
Package / Case	PowerPAK® SO-8
