SRN3012TA-220M
SRN3012TA-220M

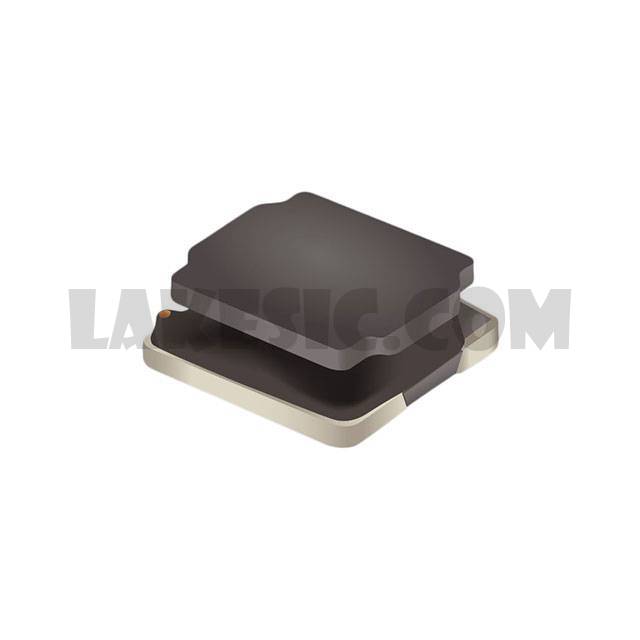

Part Number SRN3012TA-220M Description FIXED IND 22UH 610MA 580 MOHM Package / Case 1212 (3030 Metric)Unit Price Request a QuoteLead Time To be ConfirmedDetailed Description 22µH Semi-Shielded Wirewound Inductor 610mA 580mOhm 1212 (3030 Metric)
To learn about the specification of SRN3012TA-220M, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SRN3012TA-220M with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SRN3012TA-220M.
We are offering SRN3012TA-220M for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
SRN3012TA-220M - Product Attributes
Categories
Inductors, Coils, Chokes / Fixed Inductors
Datasheet SRN3012TA Series Standard Package 1 Manufacturer Bourns Inc. Series SRN3012TA Packaging Cut Tape (CT) Part Status Active Type Wirewound Material - Core Ferrite Inductance 22µH Tolerance ±20% Current Rating (Amps) 610mA Current - Saturation 490mA Shielding Semi-Shielded DC Resistance (DCR) 580mOhm Q @ Freq 22 @ 1MHz Frequency - Self Resonant 25MHz Ratings AEC-Q200 Operating Temperature -40°C ~ 125°C Inductance Frequency - Test 1MHz Mounting Type Surface Mount Package / Case 1212 (3030 Metric) Size / Dimension 0.118" L x 0.118" W (3.00mm x 3.00mm) Height - Seated (Max) 0.047" (1.20mm) Base Part Number SRN3012TA
SRN3012TA-220M - Related ProductsMore >>
SRN2010TA-2R2M Bourns Inc., 2.2µH Semi-Shielded Wirewound Inductor 1.2A 145mOhm 0806 (2016 Metric), SRN2010TA
View
SRN8040-100M Bourns Inc., 10µH Semi-Shielded Wirewound Inductor 3.1A 50mOhm Max Nonstandard, SRN8040
View
SRN3010-4R7M Bourns Inc., 4.7µH Semi-Shielded Wirewound Inductor 1.7A 210mOhm Max Nonstandard, SRN3010
View
SRN3010-150M Bourns Inc., 15µH Semi-Shielded Wirewound Inductor 800mA 612mOhm Max Nonstandard, SRN3010
View
SRN6045-101M Bourns Inc., 100µH Semi-Shielded Wirewound Inductor 700mA 494mOhm Max Nonstandard, SRN6045
View
SRN2009T-1R0M Bourns Inc., 1µH Semi-Shielded Wirewound Inductor 1.4A 65mOhm 0806 (2016 Metric), SRN2009T
View
SRN8040TA-2R2Y Bourns Inc., 2.2µH Semi-Shielded Wirewound Inductor 7.4A 11.5mOhm Nonstandard, SRN8040TA
View
SRN1060-180M Bourns Inc., 18µH Semi-Shielded Wirewound Inductor 3.85A 43mOhm Max Nonstandard, SRN1060
View
SRN5040TA-4R7M Bourns Inc., 4.7µH Semi-Shielded Wirewound Inductor 3.2A 32mOhm Nonstandard, SRN5040TA
View
SRN5020-150M Bourns Inc., 15µH Semi-Shielded Wirewound Inductor 1.2A 198mOhm Max Nonstandard, SRN5020
View
SRN8040-220M Bourns Inc., 22µH Semi-Shielded Wirewound Inductor 2.2A 100mOhm Max Nonstandard, SRN8040
View
SRN8040TA-5R6M Bourns Inc., 5.6µH Semi-Shielded Wirewound Inductor 5.4A 22mOhm Nonstandard, SRN8040TA
View
