SRN4012TA-150M
SRN4012TA-150M

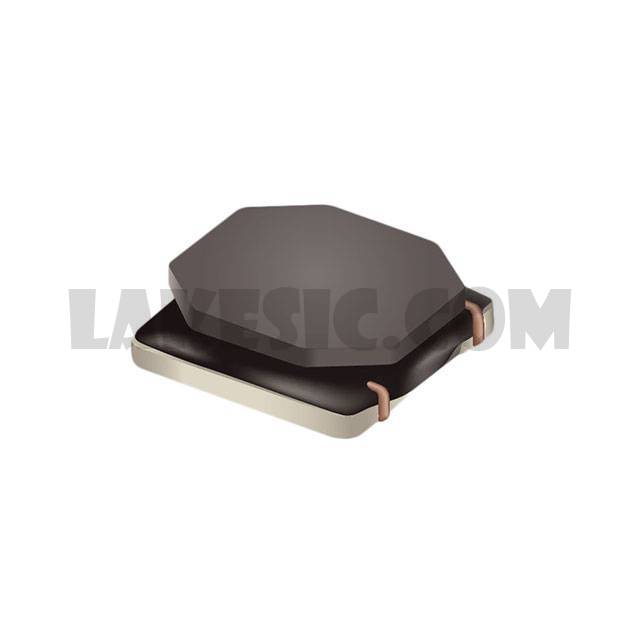

Part Number SRN4012TA-150M Description FIXED IND 15UH 750MA 260 MOHM Package / Case NonstandardUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 15µH Semi-Shielded Wirewound Inductor 750mA 260mOhm Nonstandard
To learn about the specification of SRN4012TA-150M, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SRN4012TA-150M with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SRN4012TA-150M.
We are offering SRN4012TA-150M for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
SRN4012TA-150M - Product Attributes
Categories
Inductors, Coils, Chokes / Fixed Inductors
Datasheet SRN4012TA Series Standard Package 4500 Manufacturer Bourns Inc. Series SRN4012TA Packaging Tape & Reel (TR) Part Status Active Type Wirewound Material - Core Ferrite Inductance 15µH Tolerance ±20% Current Rating (Amps) 750mA Current - Saturation 650mA Shielding Semi-Shielded DC Resistance (DCR) 260mOhm Q @ Freq 10 @ 100kHz Frequency - Self Resonant 24MHz Ratings AEC-Q200 Operating Temperature -40°C ~ 125°C Inductance Frequency - Test 100kHz Mounting Type Surface Mount Package / Case Nonstandard Size / Dimension 0.157" L x 0.157" W (4.00mm x 4.00mm) Height - Seated (Max) 0.047" (1.20mm) Base Part Number SRN4012TA
