SRN8040TA-100M
SRN8040TA-100M

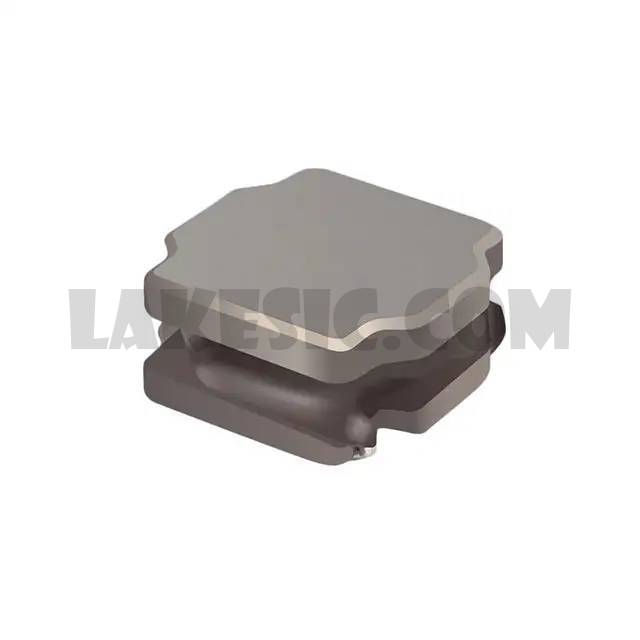

Part Number SRN8040TA-100M Description FIXED IND 10UH 4.6A 33 MOHM SMD Package / Case NonstandardUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 10µH Semi-Shielded Wirewound Inductor 4.6A 33mOhm Nonstandard
To learn about the specification of SRN8040TA-100M, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SRN8040TA-100M with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SRN8040TA-100M.
We are offering SRN8040TA-100M for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
SRN8040TA-100M - Product Attributes
Categories
Inductors, Coils, Chokes / Fixed Inductors
Datasheet SRN8040TA Series Standard Package 1 Manufacturer Bourns Inc. Series SRN8040TA Packaging Cut Tape (CT) Part Status Active Type Wirewound Material - Core Ferrite Inductance 10µH Tolerance ±20% Current Rating (Amps) 4.6A Current - Saturation 5A Shielding Semi-Shielded DC Resistance (DCR) 33mOhm Q @ Freq 15 @ 1MHz Frequency - Self Resonant 25MHz Ratings AEC-Q200 Operating Temperature -55°C ~ 125°C Inductance Frequency - Test 1MHz Mounting Type Surface Mount Package / Case Nonstandard Size / Dimension 0.315" L x 0.315" W (8.00mm x 8.00mm) Height - Seated (Max) 0.177" (4.50mm) Base Part Number SRN8040TA
