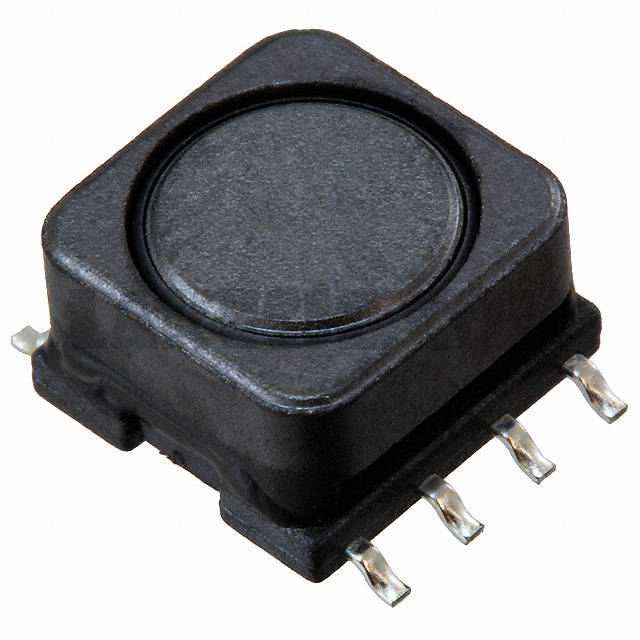

SRR0906-822KL


SRR0906-822KL

Part NumberSRR0906-822KL

Manufacturer

Description

Datasheet

Package / Case8-SMD, Gull Wing

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

SRR0906-822KL - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package1
ManufacturerBourns Inc.
SeriesSRR0906
PackagingCut Tape (CT)
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance8.2mH
Tolerance±10%
Current Rating (Amps)80mA
Current - Saturation90mA
ShieldingShielded
DC Resistance (DCR)31Ohm Max
Q @ Freq100 @ 252kHz
Frequency - Self Resonant800kHz
Ratings-
Operating Temperature-40°C ~ 125°C
Inductance Frequency - Test1kHz
Mounting TypeSurface Mount
Package / Case8-SMD, Gull Wing
Supplier Device Package-
Size / Dimension0.394" L x 0.374" W (10.00mm x 9.50mm)
Height - Seated (Max)0.248" (6.30mm)
Base Part NumberSRR0906
