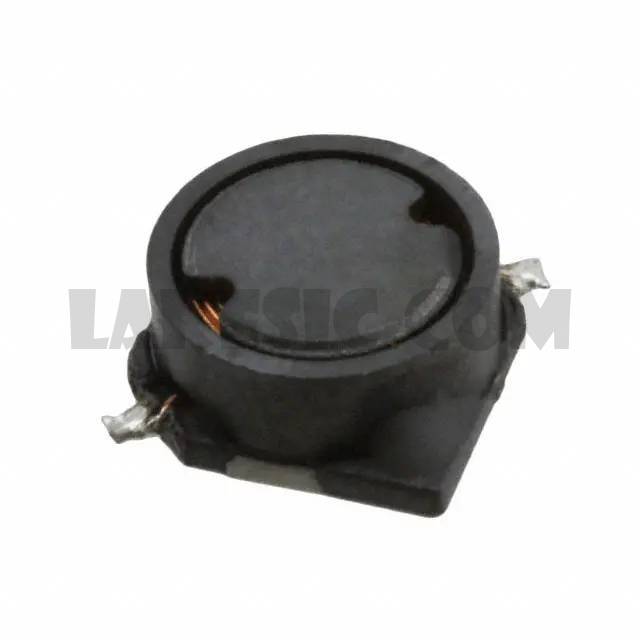

SRR7032-470M


SRR7032-470M

Part NumberSRR7032-470M

Manufacturer

Description

Datasheet

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

SRR7032-470M - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package1
ManufacturerBourns Inc.
SeriesSRR7032
PackagingCut Tape (CT)
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance47µH
Tolerance±20%
Current Rating (Amps)670mA
Current - Saturation770mA
ShieldingShielded
DC Resistance (DCR)280mOhm Max
Q @ Freq26 @ 2.52MHz
Frequency - Self Resonant18MHz
Ratings-
Operating Temperature-40°C ~ 125°C
Inductance Frequency - Test100kHz
Mounting TypeSurface Mount
Package / CaseNonstandard
Supplier Device Package-
Size / Dimension0.276" L x 0.276" W (7.00mm x 7.00mm)
Height - Seated (Max)0.134" (3.40mm)
Base Part NumberSRR7032
