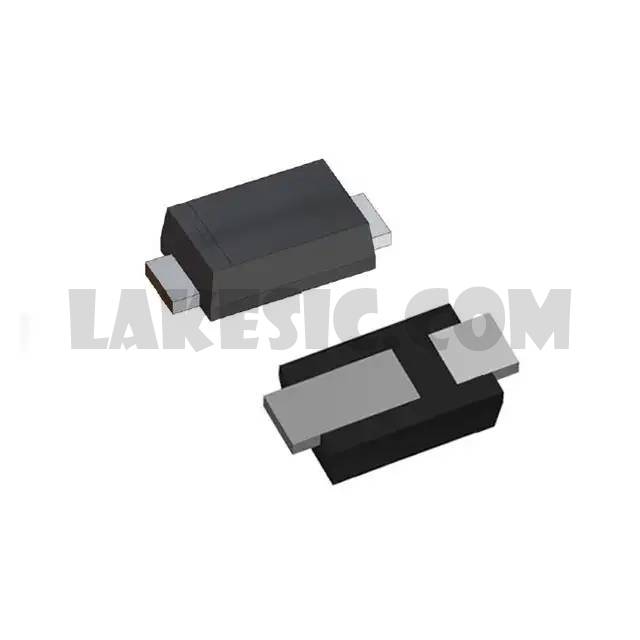

SS13FP

SS13FP

Part NumberSS13FP

ManufacturerON Semiconductor

DescriptionDIODE SCHOTTKY 30V 1A SOD123HE

DatasheetSS12FP - S115FP Datasheet

Package / CaseSOD-123H

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Schottky 30V 1A Surface Mount SOD-123HE

To learn about the specification of SS13FP, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SS13FP with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SS13FP.
We are offering SS13FP for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SS13FP - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	SS12FP - S115FP Datasheet
Standard Package	3000
Manufacturer	ON Semiconductor
Series	Automotive, AEC-Q101
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	30V
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	500mV @ 1A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	400µA @ 30V
Capacitance @ Vr, F	80pF @ 4V, 1MHz
Mounting Type	Surface Mount
Package / Case	SOD-123H
Supplier Device Package	SOD-123HE
Operating Temperature - Junction	-55°C ~ 150°C
