SSM2212RZ-R7

Part NumberSSM2212RZ-R7

ManufacturerAnalog Devices Inc.

DescriptionTRANS 2NPN 40V 0.02A 8SOIC

DatasheetSSM2212

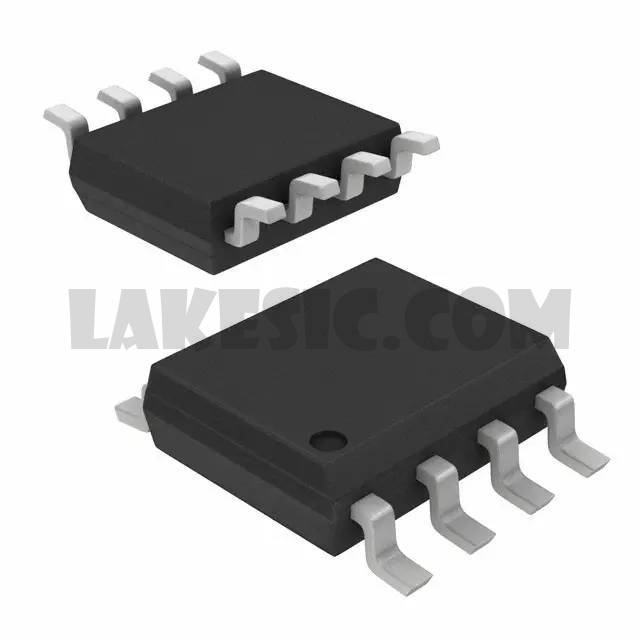

Package / Case8-SOIC (0.154", 3.90mm Width)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor Array 2 NPN (Dual) Matched Pair 40V 20mA 200MHz Surface Mount 8-SOIC

To learn about the specification of SSM2212RZ-R7, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SSM2212RZ-R7 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SSM2212RZ-R7.
We are offering SSM2212RZ-R7 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SSM2212RZ-R7 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Arrays
Datasheet	SSM2212
Standard Package	1
Manufacturer	Analog Devices Inc.
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Transistor Type	2 NPN (Dual) Matched Pair
Current - Collector (Ic) (Max)	20mA
Voltage - Collector Emitter Breakdown (Max)	40V
Vce Saturation (Max) @ Ib, Ic	200mV @ 100µA, 1mA
Current - Collector Cutoff (Max)	500pA
DC Current Gain (hFE) (Min) @ Ic, Vce	-
Power - Max	-
Frequency - Transition	200MHz
Operating Temperature	-65°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package	8-SOIC
Base Part Number	SSM2212
