SSM2220PZ

Part NumberSSM2220PZ

ManufacturerAnalog Devices Inc.

DescriptionTRANS 2PNP 36V 0.02A 8DIP

DatasheetSSM2220

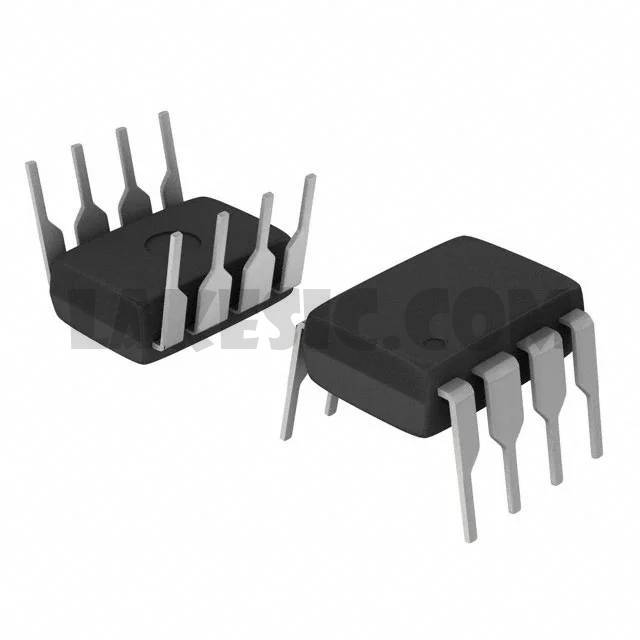

Package / Case8-DIP (0.300", 7.62mm)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor Array 2 PNP (Dual) Matched Pair 36V 20mA 190MHz Through Hole 8-PDIP

To learn about the specification of SSM2220PZ, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SSM2220PZ with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SSM2220PZ.
We are offering SSM2220PZ for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SSM2220PZ - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Arrays

Datasheet

SSM2220

Standard Package

Manufacturer

Analog Devices Inc.

Series

Packaging

Tube

Part Status

Obsolete

Transistor Type

2 PNP (Dual) Matched Pair

Current - Collector (Ic) (Max)

20mA

Voltage - Collector Emitter Breakdown (Max)

36V

Vce Saturation (Max) @ Ib, Ic

100mV @ 100µA, 1mA

Current - Collector Cutoff (Max)

DC Current Gain (hFE) (Min) @ Ic, Vce

Power - Max

Frequency - Transition

190MHz

Operating Temperature

-65°C ~ 150°C (TJ)

Mounting Type

Through Hole

Package / Case

8-DIP (0.300", 7.62mm)

Supplier Device Package

8-PDIP

Base Part Number
