SSM3K318R,LF

SSM3K318R,LF

Part NumberSSM3K318R,LF

ManufacturerToshiba Semiconductor and Storage

DescriptionMOSFET N-CH 60V 2.5A TSM

DatasheetSSM3K318R

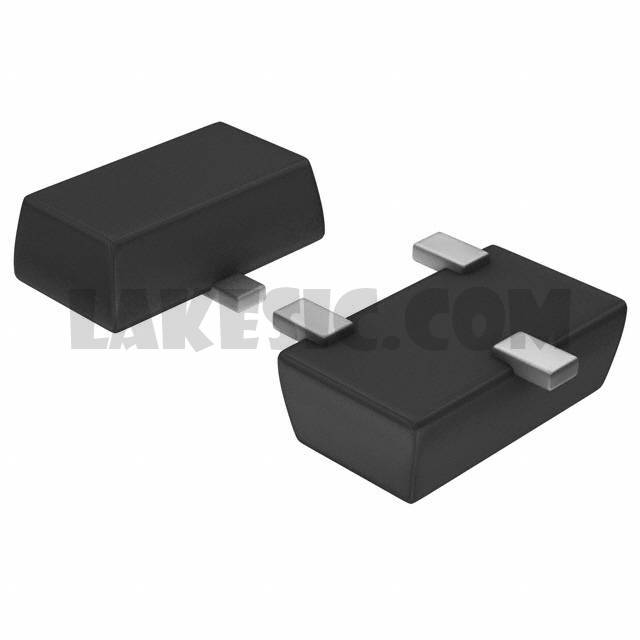

Package / CaseSOT-23-3 Flat Leads

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 60V 2.5A (Ta) 1W (Ta) Surface Mount SOT-23F

To learn about the specification of SSM3K318R,LF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SSM3K318R,LF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SSM3K318R,LF.
We are offering SSM3K318R,LF for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SSM3K318R,LF - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	SSM3K318R
Standard Package	3000
Manufacturer	Toshiba Semiconductor and Storage
Series	U-MOSIV
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25°C	2.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	107mOhm @ 2A, 10V
Vgs(th) (Max) @ Id	2.8V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	7nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	235pF @ 30V
FET Feature	-
Power Dissipation (Max)	1W (Ta)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SOT-23F
Package / Case	SOT-23-3 Flat Leads
