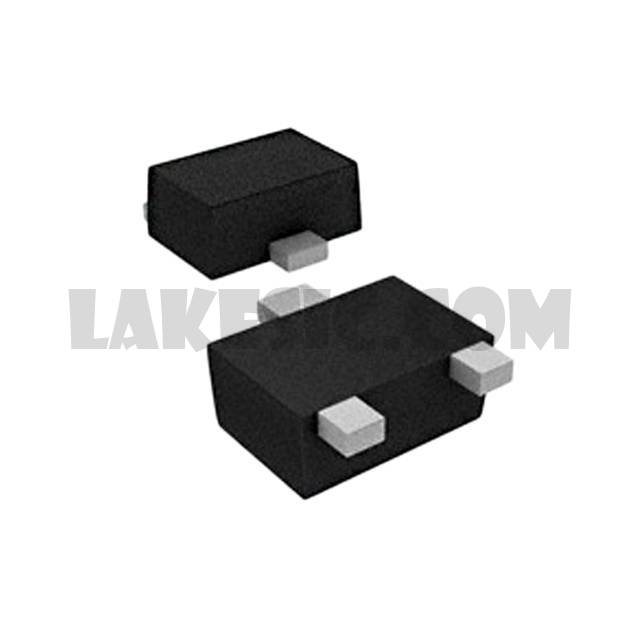

SSM3K36MFV,L3F

Part NumberSSM3K36MFV,L3F

ManufacturerToshiba Semiconductor and Storage

DescriptionMOSFET N-CH 20V 500MA VESM

DatasheetSSM3K36MFV

Package / CaseSOT-723

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 20V 500mA (Ta) 150mW (Ta) Surface Mount VESM

To learn about the specification of SSM3K36MFV,L3F, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SSM3K36MFV,L3F with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SSM3K36MFV,L3F.
We are offering SSM3K36MFV,L3F for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SSM3K36MFV,L3F - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single

Datasheet

SSM3K36MFV

Standard Package

8000

Manufacturer

Toshiba Semiconductor and Storage

Series

U-MOSIII

Packaging

Tape & Reel (TR)

Part Status

Active

FET Type

N-Channel

Technology

MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss)

20V

Current - Continuous Drain (Id) @ 25°C

500mA (Ta)

Drive Voltage (Max Rds On, Min Rds On)

1.5V, 5V

Rds On (Max) @ Id, Vgs

630mOhm @ 200mA, 5V

Vgs(th) (Max) @ Id

1V @ 1mA

Gate Charge (Qg) (Max) @ Vgs

1.23nC @ 4V

Vgs (Max)

±10V

Input Capacitance (Ciss) (Max) @ Vds

46pF @ 10V

FET Feature

Power Dissipation (Max)

150mW (Ta)

Operating Temperature

150°C (TJ)

Mounting Type

Surface Mount

Supplier Device Package

VESM

Package / Case

SOT-723
