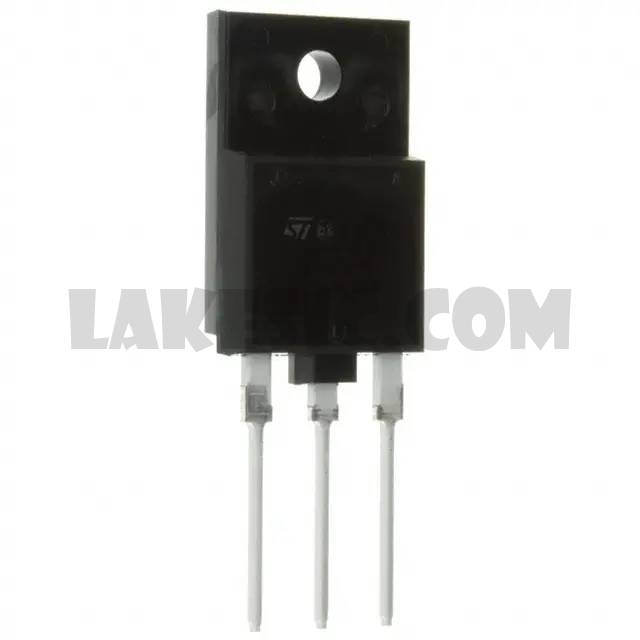

ST1510FX


ST1510FX

Part NumberST1510FX

Manufacturer

Description

Datasheet

Package / CaseISOWATT218FX

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

ST1510FX - Product Attributes

Categories Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet
Standard Package30
ManufacturerSTMicroelectronics
Series-
PackagingTube
Part StatusActive
Transistor TypeNPN
Current - Collector (Ic) (Max)12A
Voltage - Collector Emitter Breakdown (Max)750V
Vce Saturation (Max) @ Ib, Ic2V @ 1.5A, 6A
Current - Collector Cutoff (Max)200µA
DC Current Gain (hFE) (Min) @ Ic, Vce6.5 @ 6A, 5V
Power - Max62W
Frequency - Transition-
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Package / CaseISOWATT218FX
Supplier Device PackageISOWATT-218FX
