STD03N
STD03N

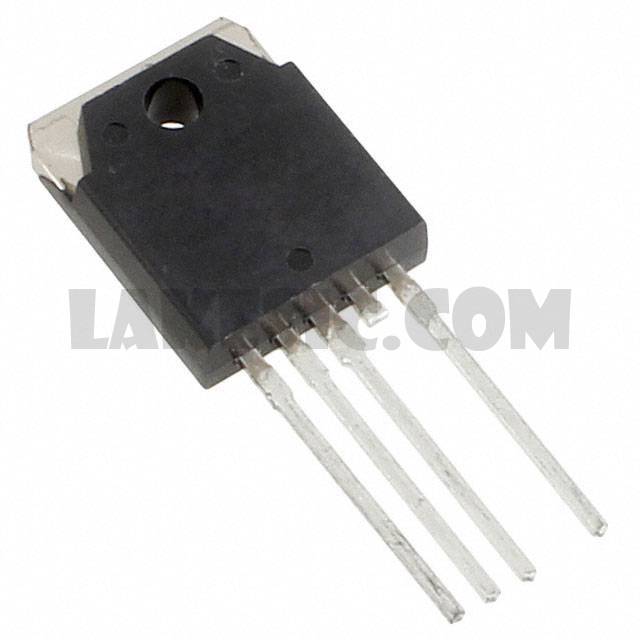

Part Number STD03N Description TRANS NPN DARL 160V 15A TO-3P-5 Package / Case TO-3P-5Unit Price Request a QuoteLead Time To be ConfirmedDetailed Description Bipolar (BJT) Transistor NPN - Darlington 160V 15A 160W Through Hole TO-3P-5L
To learn about the specification of STD03N, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add STD03N with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of STD03N.
We are offering STD03N for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
STD03N - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet STD03N Standard Package 30 Manufacturer Sanken Series - Packaging Bulk Part Status Active Transistor Type NPN - Darlington Current - Collector (Ic) (Max) 15A Voltage - Collector Emitter Breakdown (Max) 160V Vce Saturation (Max) @ Ib, Ic 2V @ 10mA, 10A Current - Collector Cutoff (Max) 100µA (ICBO) DC Current Gain (hFE) (Min) @ Ic, Vce 5000 @ 10A, 4V Power - Max 160W Frequency - Transition - Operating Temperature 150°C (TJ) Mounting Type Through Hole Package / Case TO-3P-5 Supplier Device Package TO-3P-5L
