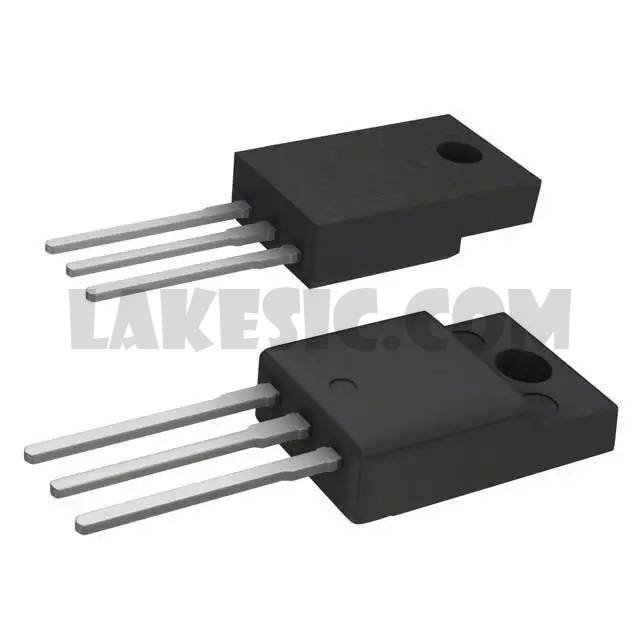

Part Number STGF20H60DF
Description IGBT 600V 40A 37W TO220FP
Package / Case TO-220-3 Full Pack
Unit Price Request a Quote
Lead Time To be Confirmed
Detailed Description IGBT Trench Field Stop 600V 40A 37W Through Hole TO-220FP
To learn about the specification of STGF20H60DF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add STGF20H60DF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of STGF20H60DF.
We are offering STGF20H60DF for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
STGF20H60DF - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet STG(B,F,P)20H60DF
Standard Package 50
Manufacturer STMicroelectronics
Series -
Packaging Tube
Part Status Active
IGBT Type Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) 600V
Current - Collector (Ic) (Max) 40A
Current - Collector Pulsed (Icm) 80A
Vce(on) (Max) @ Vge, Ic 2V @ 15V, 20A
Power - Max 37W
Switching Energy 209µJ (on), 261µJ (off)
Input Type Standard
Gate Charge 115nC
Td (on/off) @ 25°C 42.5ns/177ns
Test Condition 400V, 20A, 10Ohm, 15V
Reverse Recovery Time (trr) 90ns
Operating Temperature -55°C ~ 175°C (TJ)
Mounting Type Through Hole
Package / Case TO-220-3 Full Pack
Supplier Device Package TO-220FP
