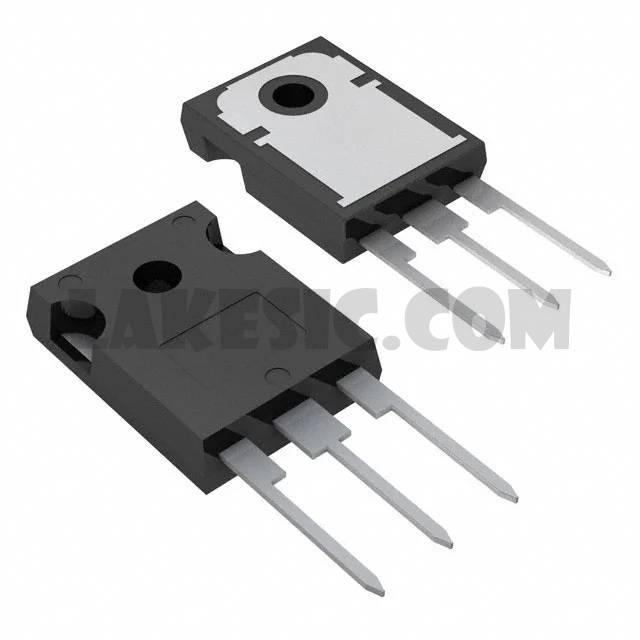

Part Number STGW15S120DF3 Description IGBT 1200V 15A TO247 Package / Case TO-247-3Unit Price Request a QuoteLead Time To be ConfirmedDetailed Description IGBT Trench Field Stop 1200V 30A 259W Through Hole TO-247-3
To learn about the specification of STGW15S120DF3, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add STGW15S120DF3 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of STGW15S120DF3.
We are offering STGW15S120DF3 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
STGW15S120DF3 - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet STGW(A)15S120DF3 Standard Package 30 Manufacturer STMicroelectronics Series - Packaging Tube Part Status Active IGBT Type Trench Field Stop Voltage - Collector Emitter Breakdown (Max) 1200V Current - Collector (Ic) (Max) 30A Current - Collector Pulsed (Icm) 60A Vce(on) (Max) @ Vge, Ic 2.05V @ 15V, 15A Power - Max 259W Switching Energy 540µJ (on), 1.38mJ (off) Input Type Standard Gate Charge 53nC Td (on/off) @ 25°C 23ns/140ns Test Condition 600V, 15A, 22Ohm, 15V Reverse Recovery Time (trr) 270ns Operating Temperature -55°C ~ 175°C (TJ) Mounting Type Through Hole Package / Case TO-247-3 Supplier Device Package TO-247-3
