Categories	Discrete Semiconductor Products / Transistors - IGBTs - Single

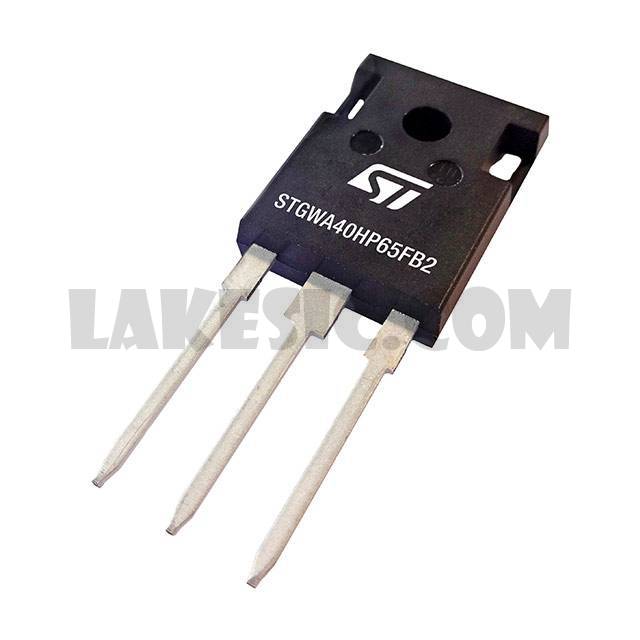

Datasheet	STGWA40HP65FB2
Standard Package	600
Manufacturer	STMicroelectronics
Series	HB2
Part Status	Active
IGBT Type	Trench Field Stop
Voltage - Collector Emitter Breakdown (Max)	650V
Current - Collector (Ic) (Max)	72A
Current - Collector Pulsed (Icm)	120A
Vce(on) (Max) @ Vge, Ic	2V @ 15V, 40A
Power - Max	227W
Switching Energy	410µJ (off)
Input Type	Standard
Gate Charge	153nC
Td (on/off) @ 25°C	-/125ns
Test Condition	400V, 40A, 4.7Ohm, 15V
Reverse Recovery Time (trr)	140ns
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-247-3
Supplier Device Package	TO-247 Long Leads
