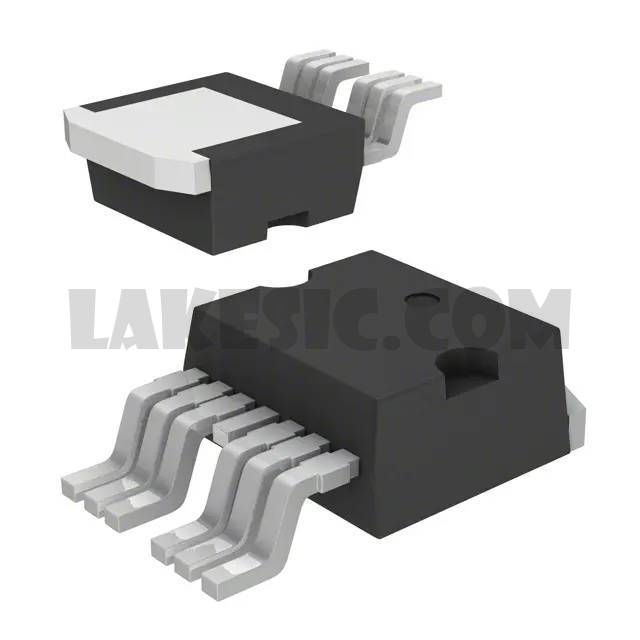

STH260N6F6-6

STH260N6F6-6

Part NumberSTH260N6F6-6

ManufacturerSTMicroelectronics

DescriptionMOSFET N-CH 60V 180A H2PAK-6

DatasheetSTH260N6F6-6

Package / CaseTO-263-7, D²Pak (6 Leads + Tab)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 60V 180A (Tc) 300W (Tc) Surface Mount H2PAK-6

To learn about the specification of STH260N6F6-6, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add STH260N6F6-6 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of STH260N6F6-6.
We are offering STH260N6F6-6 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

STH260N6F6-6 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	STH260N6F6-6
Standard Package	1
Manufacturer	STMicroelectronics
Series	DeepGATE™, STripFET™ VI
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25°C	180A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	2.4mOhm @ 60A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	183nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	11800pF @ 25V
FET Feature	-
Power Dissipation (Max)	300W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	H2PAK-6
Package / Case	TO-263-7, D²Pak (6 Leads + Tab)
