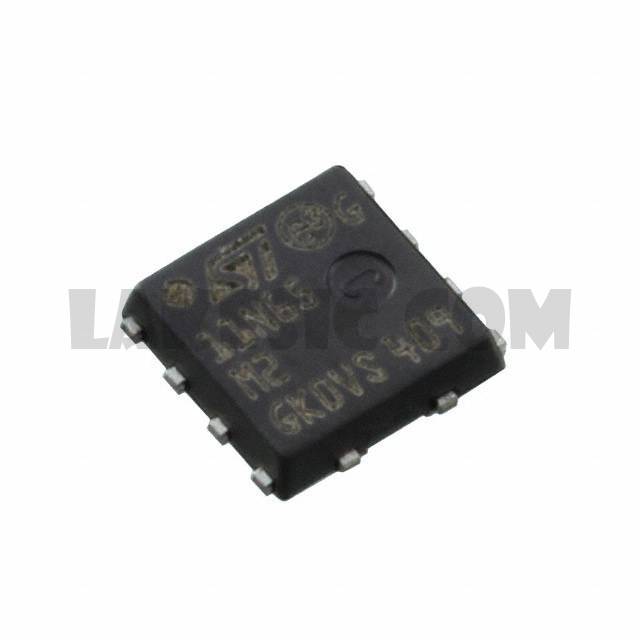

STL11N65M2


STL11N65M2

Part NumberSTL11N65M2

Manufacturer

Description

Package / Case-

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

STL11N65M2 - Product Attributes

Categories Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Standard Package3000
ManufacturerSTMicroelectronics
Series-
PackagingTape & Reel (TR)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)650V
Current - Continuous Drain (Id) @ 25°C7A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs670mOhm @ 3.5A, 10V
Vgs(th) (Max) @ Id4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs12.4nC @ 10V
Vgs (Max)±25V
Input Capacitance (Ciss) (Max) @ Vds410pF @ 100V
FET Feature-
Power Dissipation (Max)85W (Tc)
Operating Temperature-55°C ~ 150°C (TA)
Mounting TypeSurface Mount
Supplier Device Package-
Package / Case-
