STL13NM60N

STL13NM60N

Part NumberSTL13NM60N

ManufacturerSTMicroelectronics

DescriptionMOSFET N-CH 600V 10A POWERFLAT

DatasheetSTL13NM60N

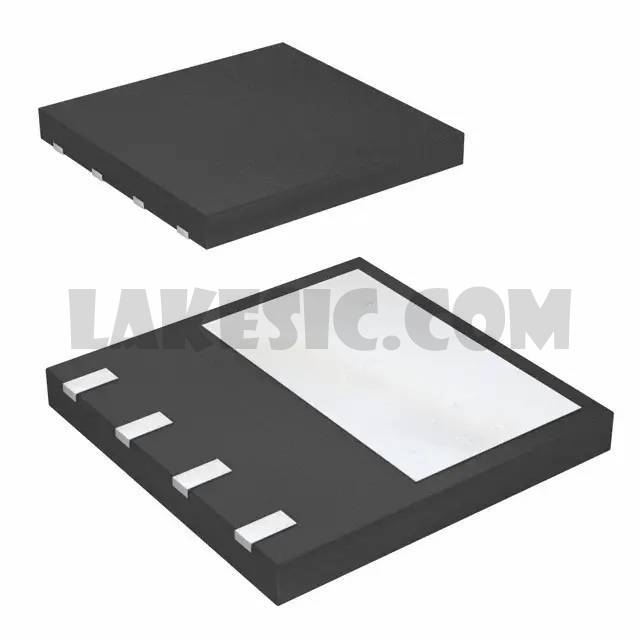

Package / Case8-PowerVDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 600V 10A (Tc) 3W (Ta), 90W (Tc) Surface Mount PowerFlat™ (8x8) HV

To learn about the specification of STL13NM60N, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add STL13NM60N with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of STL13NM60N.
We are offering STL13NM60N for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

STL13NM60N - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	STL13NM60N
Standard Package	1
Manufacturer	STMicroelectronics
Series	MDmesh™ II
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600V
Current - Continuous Drain (Id) @ 25°C	10A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	385mOhm @ 5A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	30nC @ 10V
Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	790pF @ 50V
FET Feature	-
Power Dissipation (Max)	3W (Ta), 90W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerFlat™ (8x8) HV
Package / Case	8-PowerVDFN
