STL65DN3LLH5

STL65DN3LLH5

Part NumberSTL65DN3LLH5

ManufacturerSTMicroelectronics

DescriptionMOSFET 2N-CH 30V 65A POWERFLAT

DatasheetSTL65DN3LLH5

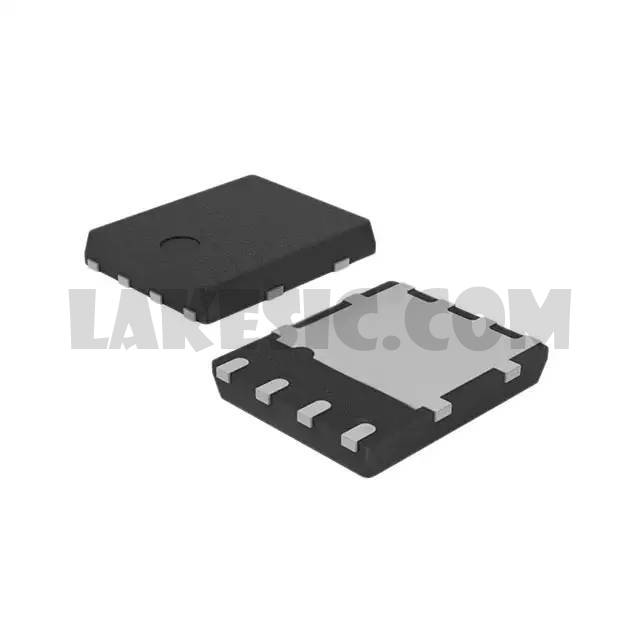

Package / Case8-PowerVDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Dual) 30V 65A 60W Surface Mount PowerFlat™ (5x6)

To learn about the specification of STL65DN3LLH5, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add STL65DN3LLH5 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of STL65DN3LLH5.
We are offering STL65DN3LLH5 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

STL65DN3LLH5 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	STL65DN3LLH5
Standard Package	1
Manufacturer	STMicroelectronics
Series	STripFET™ V
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	2 N-Channel (Dual)
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	65A
Rds On (Max) @ Id, Vgs	6.5mOhm @ 9.5A, 10V
Vgs(th) (Max) @ Id	1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	12nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	1500pF @ 25V
Power - Max	60W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-PowerVDFN
Supplier Device Package	PowerFlat™ (5x6)
Base Part Number	ST*65DN
