STL9P3LLH6

STL9P3LLH6

Part NumberSTL9P3LLH6

ManufacturerSTMicroelectronics

DescriptionMOSFET PCH 30V 9A POWERFLAT

DatasheetSTL9P3LLH6 Datasheet

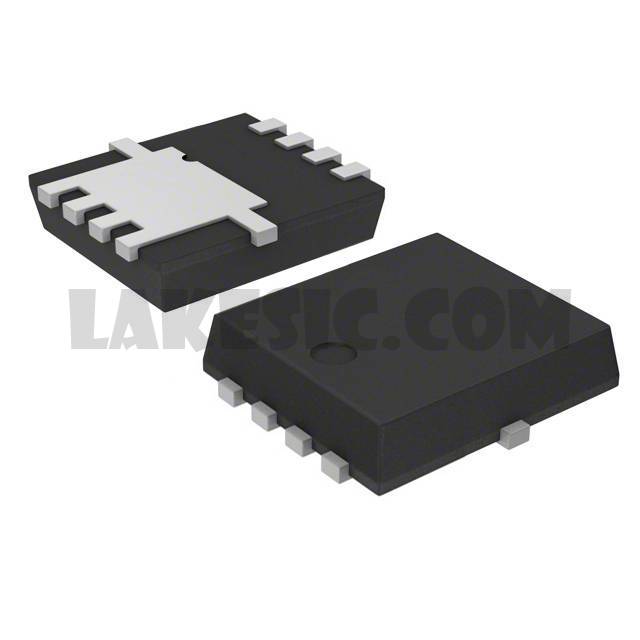

Package / Case8-PowerVDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionP-Channel 30V 9A (Tc) 3W (Ta) Surface Mount PowerFlat™ (3.3x3.3)

To learn about the specification of STL9P3LLH6, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add STL9P3LLH6 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of STL9P3LLH6.
We are offering STL9P3LLH6 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

STL9P3LLH6 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	STL9P3LLH6 Datasheet
Standard Package	3000
Manufacturer	STMicroelectronics
Series	STripFET™ H6
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	9A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	15mOhm @ 4.5A, 10V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	24nC @ 4.5V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2615pF @ 25V
FET Feature	-
Power Dissipation (Max)	3W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerFlat™ (3.3x3.3)
Package / Case	8-PowerVDFN
