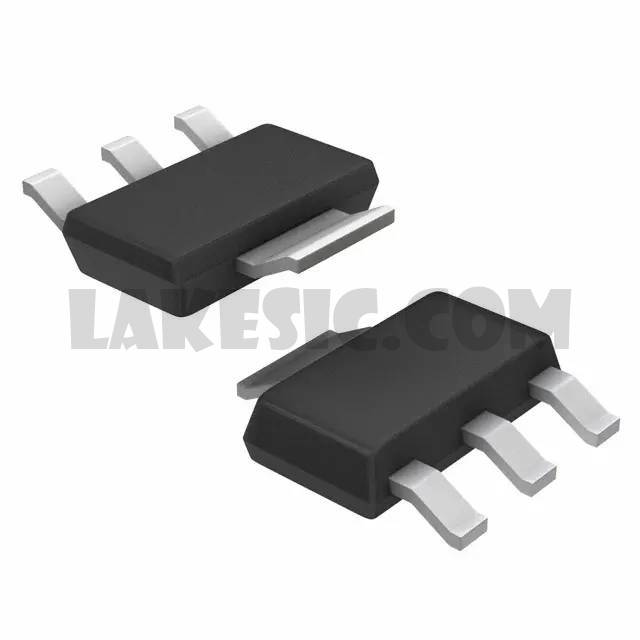

STN4NF20L

STN4NF20L

Part NumberSTN4NF20L

ManufacturerSTMicroelectronics

DescriptionMOSFET N-CH 200V 1A SOT-223

DatasheetSTx4NF20L

Package / CaseTO-261-4, TO-261AA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 200V 1A (Tc) 3.3W (Tc) Surface Mount SOT-223

To learn about the specification of STN4NF20L, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add STN4NF20L with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of STN4NF20L.
We are offering STN4NF20L for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

STN4NF20L - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	STx4NF20L
Standard Package	1
Manufacturer	STMicroelectronics
Series	STripFET™ II
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	200V
Current - Continuous Drain (Id) @ 25°C	1A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	5V, 10V
Rds On (Max) @ Id, Vgs	1.5Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	0.9nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	150pF @ 25V
FET Feature	-
Power Dissipation (Max)	3.3W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SOT-223
Package / Case	TO-261-4, TO-261AA
