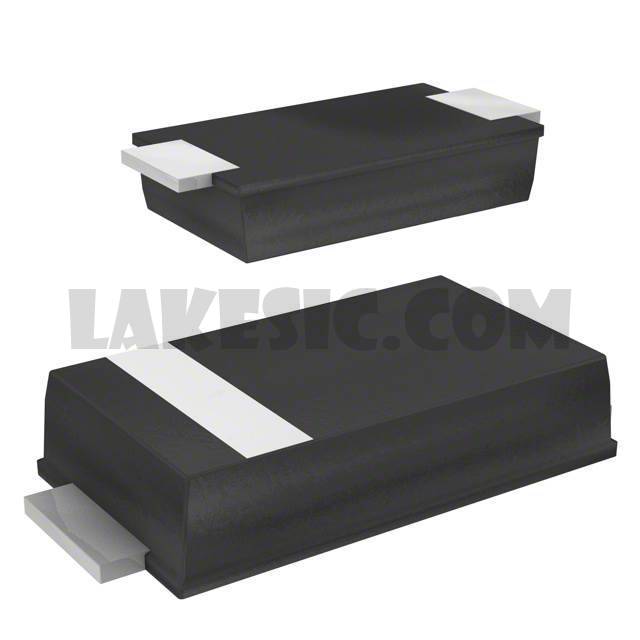

STPS2H100AF

STPS2H100AF

Part NumberSTPS2H100AF

ManufacturerSTMicroelectronics

DescriptionDIODE SCHOTTKY 100V 2A SMAFLAT

DatasheetSTPS2H100

Package / CaseDO-221AC, SMA Flat Leads

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Schottky 100V 2A Surface Mount SMAflat

To learn about the specification of STPS2H100AF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add STPS2H100AF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of STPS2H100AF.
We are offering STPS2H100AF for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

STPS2H100AF - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	STPS2H100
Standard Package	1
Manufacturer	STMicroelectronics
Series	Automotive, AEC-Q101
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	100V
Current - Average Rectified (Io)	2A
Voltage - Forward (Vf) (Max) @ If	790mV @ 2A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	1µA @ 100V
Capacitance @ Vr, F	-
Mounting Type	Surface Mount
Package / Case	DO-221AC, SMA Flat Leads
Supplier Device Package	SMAflat
Operating Temperature - Junction	-65°C ~ 175°C
