STS8DN6LF6AG

Part NumberSTS8DN6LF6AG

ManufacturerSTMicroelectronics

DescriptionMOSFET 2 N-CHANNEL 60V 8A 8SO

DatasheetSTS8DN6LF6AG Datasheet

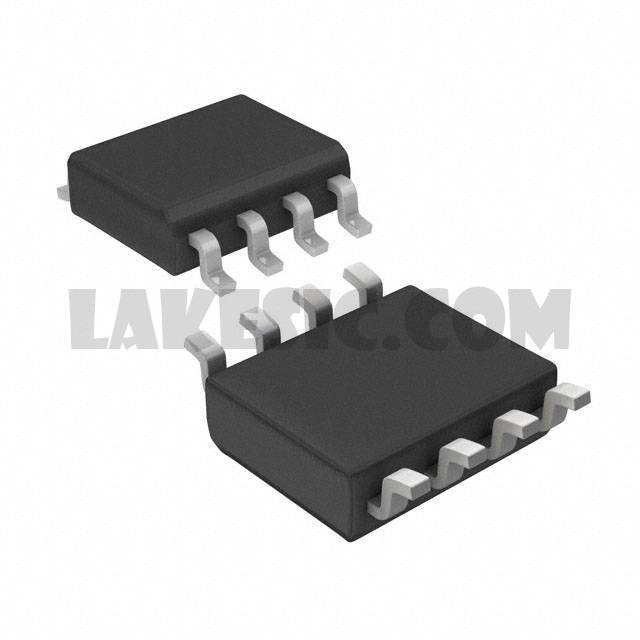

Package / Case8-SOIC (0.154", 3.90mm Width)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Dual) 60V 8A (Ta) 3.2W Surface Mount 8-SO

To learn about the specification of STS8DN6LF6AG, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add STS8DN6LF6AG with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of STS8DN6LF6AG.
We are offering STS8DN6LF6AG for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

STS8DN6LF6AG - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	STS8DN6LF6AG Datasheet
Standard Package	2500
Manufacturer	STMicroelectronics
Series	Automotive, AEC-Q101, STripFET™ F6
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	2 N-Channel (Dual)
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25°C	8A (Ta)
Rds On (Max) @ Id, Vgs	24mOhm @ 4A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	27nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	1340pF @ 25V
Power - Max	3.2W
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package	8-SO
