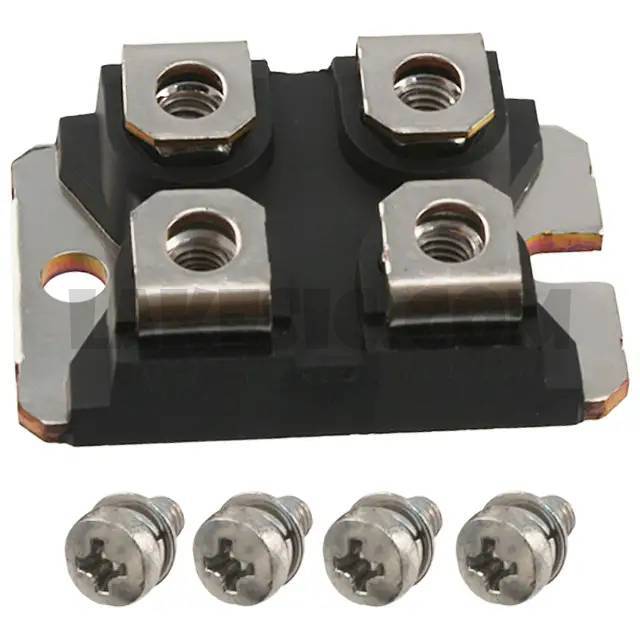

STTH120L06TV1

Part NumberSTTH120L06TV1

ManufacturerSTMicroelectronics

DescriptionDIODE MODULE 600V 60A ISOTOP

DatasheetSTTH120L06TV

Package / CaseISOTOP

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Array 2 Independent Standard 600V 60A Chassis Mount ISOTOP

To learn about the specification of STTH120L06TV1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add STTH120L06TV1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of STTH120L06TV1.
We are offering STTH120L06TV1 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

STTH120L06TV1 - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Arrays
Datasheet	STTH120L06TV
Standard Package	10
Manufacturer	STMicroelectronics
Series	-
Packaging	Tube
Part Status	Active
Diode Configuration	2 Independent
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	600V
Current - Average Rectified (Io) (per Diode)	60A
Voltage - Forward (Vf) (Max) @ If	1.55V @ 60A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	105ns
Current - Reverse Leakage @ Vr	50µA @ 600V
Operating Temperature - Junction	150°C (Max)
Mounting Type	Chassis Mount
Package / Case	ISOTOP
Supplier Device Package	ISOTOP®
