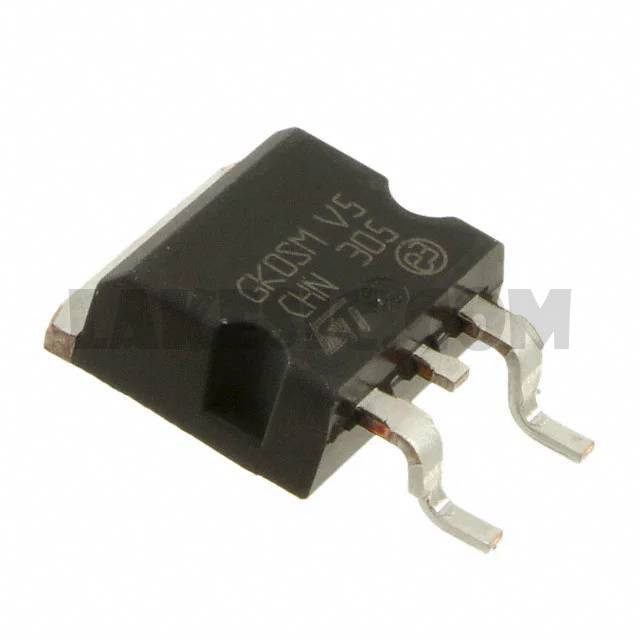

STTH2003CGY-TR

Part NumberSTTH2003CGY-TR

ManufacturerSTMicroelectronics

DescriptionDIODE ARRAY GP 300V 10A D2PAK

DatasheetSTTH2003C-Y

Package / CaseTO-263-3, D²Pak (2 Leads + Tab), TO-263AB

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Array 1 Pair Common Cathode Standard 300V 10A Surface Mount TO-263-3, D²Pak (2 Leads + Tab), TO-263AB

To learn about the specification of STTH2003CGY-TR, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add STTH2003CGY-TR with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of STTH2003CGY-TR.
We are offering STTH2003CGY-TR for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

STTH2003CGY-TR - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Arrays
Datasheet	STTH2003C-Y
Standard Package	1
Manufacturer	STMicroelectronics
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Diode Configuration	1 Pair Common Cathode
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	300V
Current - Average Rectified (Io) (per Diode)	10A
Voltage - Forward (Vf) (Max) @ If	1.25V @ 10A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	40ns
Current - Reverse Leakage @ Vr	20µA @ 300V
Operating Temperature - Junction	-40°C ~ 175°C
Mounting Type	Surface Mount
Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package	D²PAK
Base Part Number	STTH2003C
