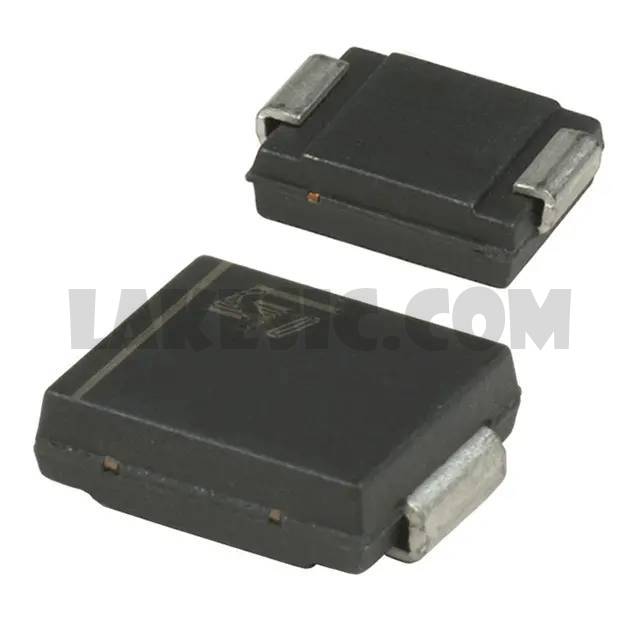

STTH302S
STTH302S
Part Number STTH302S
Description DIODE GEN PURP 200V 3A SMC
Package / Case DO-214AB, SMC
Unit Price Request a Quote
Lead Time To be Confirmed
Detailed Description Diode Standard 200V 3A Surface Mount SMC
To learn about the specification of STTH302S, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add STTH302S with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of STTH302S.
We are offering STTH302S for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
STTH302S - Product Attributes
Categories
Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet STTH302S
Standard Package 1
Manufacturer STMicroelectronics
Series -
Packaging Cut Tape (CT)
Part Status Active
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 200V
Current - Average Rectified (Io) 3A
Voltage - Forward (Vf) (Max) @ If 950mV @ 3A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 35ns
Current - Reverse Leakage @ Vr 3µA @ 200V
Capacitance @ Vr, F -
Mounting Type Surface Mount
Package / Case DO-214AB, SMC
Supplier Device Package SMC
Operating Temperature - Junction 175°C (Max)
Base Part Number STTH302
