STTH30AC06CWL

Part NumberSTTH30AC06CWL

ManufacturerSTMicroelectronics

DescriptionDIODE ARRAY GP 600V 15A TO247

DatasheetSTTH30AC06C

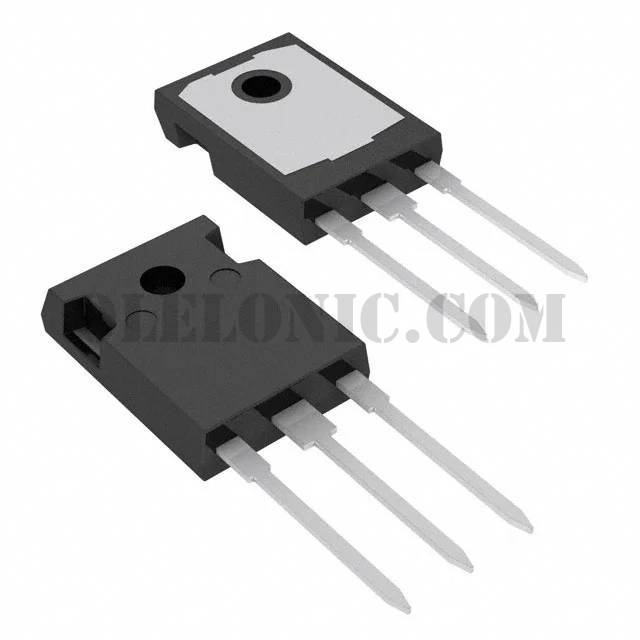

Package / CaseTO-247-3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Array 1 Pair Common Cathode Standard 600V 15A Through Hole TO-247-3

To learn about the specification of STTH30AC06CWL, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add STTH30AC06CWL with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of STTH30AC06CWL.
We are offering STTH30AC06CWL for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

STTH30AC06CWL - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Arrays
Datasheet	STTH30AC06C
Standard Package	30
Manufacturer	STMicroelectronics
Series	-
Packaging	Tube
Part Status	Active
Diode Configuration	1 Pair Common Cathode
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	600V
Current - Average Rectified (Io) (per Diode)	15A
Voltage - Forward (Vf) (Max) @ If	1.95V @ 15A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	55ns
Current - Reverse Leakage @ Vr	10µA @ 600V
Operating Temperature - Junction	-65°C ~ 175°C
Mounting Type	Through Hole
Package / Case	TO-247-3
Supplier Device Package	TO-247
