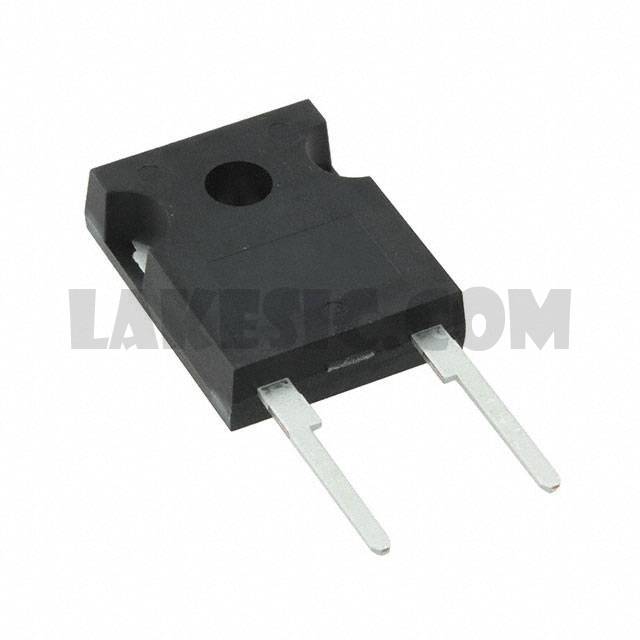

STTH30L06W

STTH30L06W

Part NumberSTTH30L06W

ManufacturerSTMicroelectronics

DescriptionDIODE GEN PURP 600V 30A DO247

DatasheetSTTH30L06

Package / CaseDO-247-2 (Straight Leads)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Standard 600V 30A Through Hole DO-247

To learn about the specification of STTH30L06W, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add STTH30L06W with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of STTH30L06W.
We are offering STTH30L06W for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

STTH30L06W - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	STTH30L06
Standard Package	30
Manufacturer	STMicroelectronics
Series	-
Packaging	Tube
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	600V
Current - Average Rectified (Io)	30A
Voltage - Forward (Vf) (Max) @ If	1.55V @ 30A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	90ns
Current - Reverse Leakage @ Vr	25µA @ 600V
Capacitance @ Vr, F	-
Mounting Type	Through Hole
Package / Case	DO-247-2 (Straight Leads)
Supplier Device Package	DO-247
Operating Temperature - Junction	175°C (Max)
Base Part Number	STTH30L06
