STTH8L02DDJFY-TR

Part NumberSTTH8L02DDJFY-TR

ManufacturerSTMicroelectronics

DescriptionDIODE ARRAY GP 200V 4A PWRFLAT

DatasheetSTTH8L02DDJFY-TR

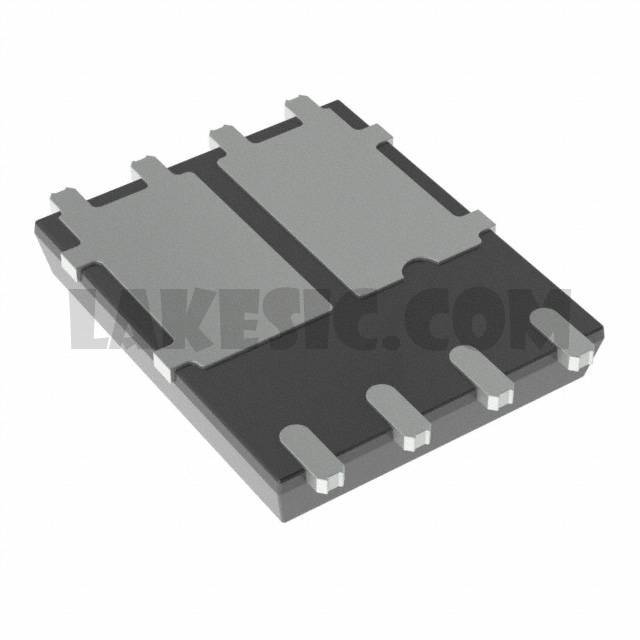

Package / Case8-PowerVDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Array 2 Independent Standard 200V 4A Surface Mount, Wettable Flank 8-PowerVDFN

To learn about the specification of STTH8L02DDJFY-TR, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add STTH8L02DDJFY-TR with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of STTH8L02DDJFY-TR.
We are offering STTH8L02DDJFY-TR for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

STTH8L02DDJFY-TR - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Arrays
Datasheet	STTH8L02DDJFY-TR
Standard Package	1
Manufacturer	STMicroelectronics
Series	Automotive, AEC-Q101, ECOPACK®2
Packaging	Cut Tape (CT)
Part Status	Active
Diode Configuration	2 Independent
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	200V
Current - Average Rectified (Io) (per Diode)	4A
Voltage - Forward (Vf) (Max) @ If	1.1V @ 8A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	40ns
Current - Reverse Leakage @ Vr	3µA @ 200V
Operating Temperature - Junction	-40°C ~ 175°C
Mounting Type	Surface Mount, Wettable Flank
Package / Case	8-PowerVDFN
Supplier Device Package	PowerFlat™ (5x6) Dual
