STV240N75F3

STV240N75F3

Part NumberSTV240N75F3

ManufacturerSTMicroelectronics

DescriptionMOSFET N-CH 75V 240A POWERSO-10

DatasheetSTV240N75F3 Datasheet

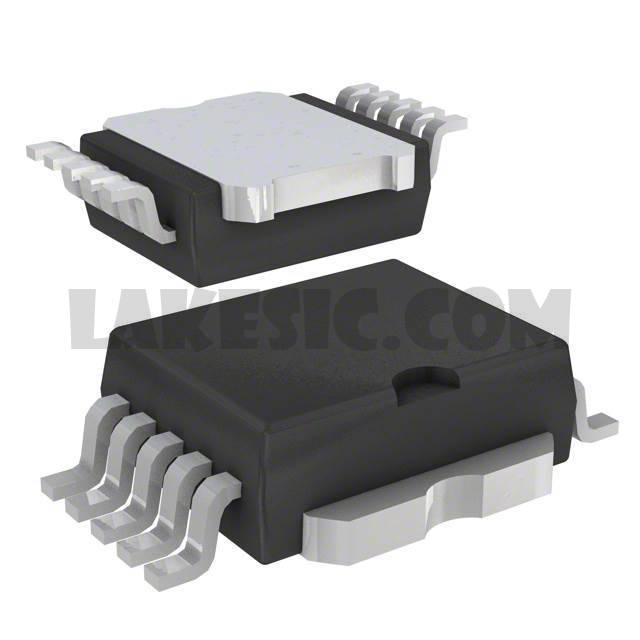

Package / CasePowerSO-10 Exposed Bottom Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 75V 240A (Tc) 300W (Tc) Surface Mount 10-PowerSO

To learn about the specification of STV240N75F3, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add STV240N75F3 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of STV240N75F3.
We are offering STV240N75F3 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

STV240N75F3 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	STV240N75F3 Datasheet
Standard Package	1
Manufacturer	STMicroelectronics
Series	STripFET™ III
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	75V
Current - Continuous Drain (Id) @ 25°C	240A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	2.6mOhm @ 120A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	100nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	6800pF @ 25V
FET Feature	-
Power Dissipation (Max)	300W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	10-PowerSO
Package / Case	PowerSO-10 Exposed Bottom Pad
