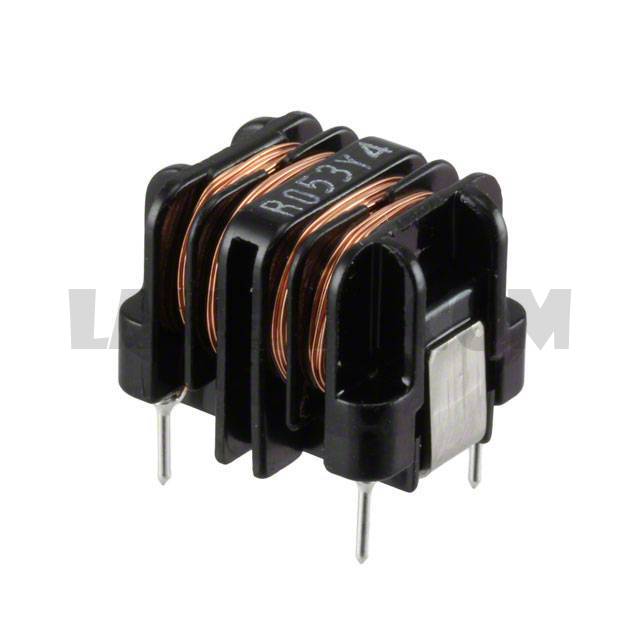

SU10VFC-R05140


SU10VFC-R05140

Part NumberSU10VFC-R05140

Manufacturer

Description

Datasheet

Package / CaseVertical, 4 PC Pin

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

SU10VFC-R05140 - Product Attributes

Categories Filters / Common Mode Chokes
Datasheet
Standard Package700
ManufacturerKEMET
SeriesSU
PackagingBulk
Part StatusActive
Filter TypePower Line
Number of Lines2
Inductance @ Frequency14mH @ 1kHz
Current Rating (Max)500mA
DC Resistance (DCR) (Max)1.6Ohm
Voltage Rating - DC-
Voltage Rating - AC250V
Operating Temperature-25°C ~ 120°C
Ratings-
Approvals-
Features-
Mounting TypeThrough Hole
Size / Dimension0.709" L x 0.610" W (18.00mm x 15.50mm)
Height (Max)0.591" (15.00mm)
Package / CaseVertical, 4 PC Pin
