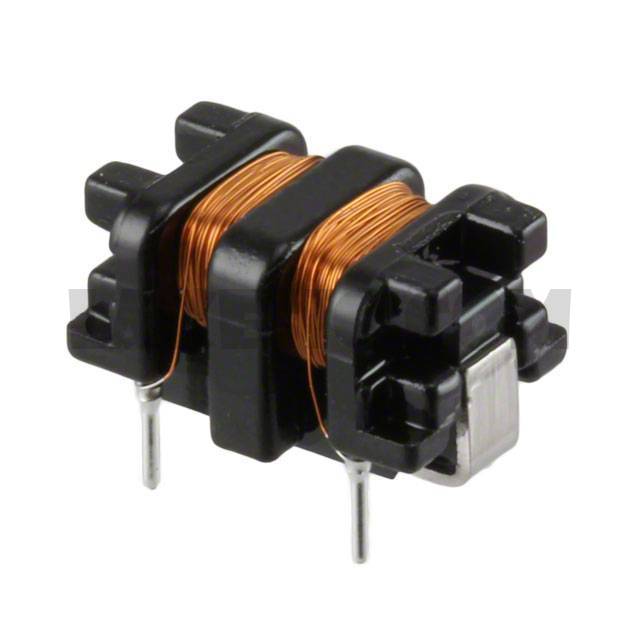

SU7VC-02120


SU7VC-02120

Part NumberSU7VC-02120

Manufacturer

Description

Datasheet

Package / CaseVertical, 4 PC Pin

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

SU7VC-02120 - Product Attributes

Categories Filters / Common Mode Chokes
Datasheet
Standard Package1800
ManufacturerKEMET
SeriesSU
PackagingTray
Part StatusActive
Filter TypePower Line
Number of Lines2
Inductance @ Frequency12mH @ 1kHz
Current Rating (Max)200mA
DC Resistance (DCR) (Max)6.5Ohm
Voltage Rating - DC-
Voltage Rating - AC125V
Operating Temperature-25°C ~ 120°C
Ratings-
Approvals-
Features-
Mounting TypeThrough Hole
Size / Dimension0.591" L x 0.394" W (15.00mm x 10.00mm)
Height (Max)0.335" (8.50mm)
Package / CaseVertical, 4 PC Pin
