SUD50NP04-77P-T4E3

Part NumberSUD50NP04-77P-T4E3

ManufacturerVishay Siliconix

DescriptionMOSFET N/P-CH 40V 8A TO252-4

DatasheetSUD50NP04-77P

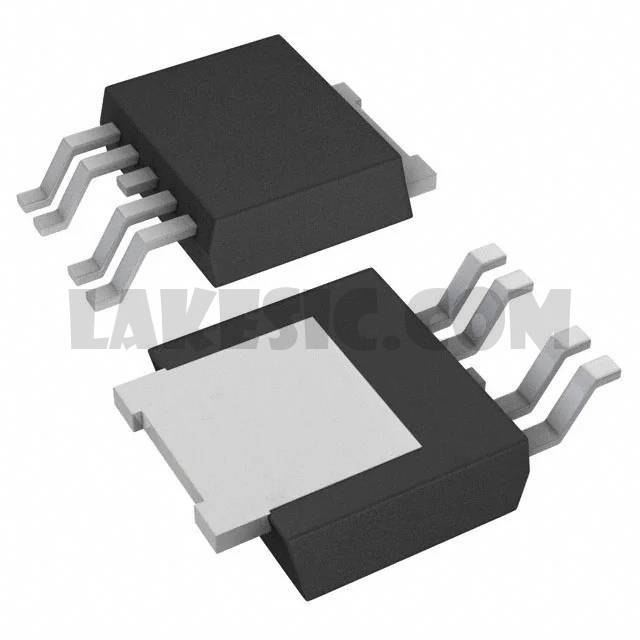

Package / CaseTO-252-5, DPak (4 Leads + Tab), TO-252AD

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array N and P-Channel, Common Drain 40V 8A 10.8W, 24W Surface Mount TO-252-4L

To learn about the specification of SUD50NP04-77P-T4E3, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SUD50NP04-77P-T4E3 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SUD50NP04-77P-T4E3.
We are offering SUD50NP04-77P-T4E3 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SUD50NP04-77P-T4E3 - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays

Datasheet

SUD50NP04-77P

Standard Package

2500

Manufacturer

Vishay Siliconix

Series

TrenchFET®

Packaging

Tape & Reel (TR)

Part Status

Active

FET Type

N and P-Channel, Common Drain

FET Feature

Standard

Drain to Source Voltage (Vdss)

40V

Current - Continuous Drain (Id) @ 25°C

Rds On (Max) @ Id, Vgs

37mOhm @ 5A, 10V

Vgs(th) (Max) @ Id

2.5V @ 250µA

Gate Charge (Qg) (Max) @ Vgs

20nC @ 10V

Input Capacitance (Ciss) (Max) @ Vds

640pF @ 20V

Power - Max

10.8W, 24W

Operating Temperature

-55°C ~ 150°C (TJ)

Mounting Type

Surface Mount

Package / Case

TO-252-5, DPak (4 Leads + Tab), TO-252AD

Supplier Device Package

TO-252-4L
